| Brand |
Fabaro |
|---|
Hot
Smoke-Control
5.300,00 ден

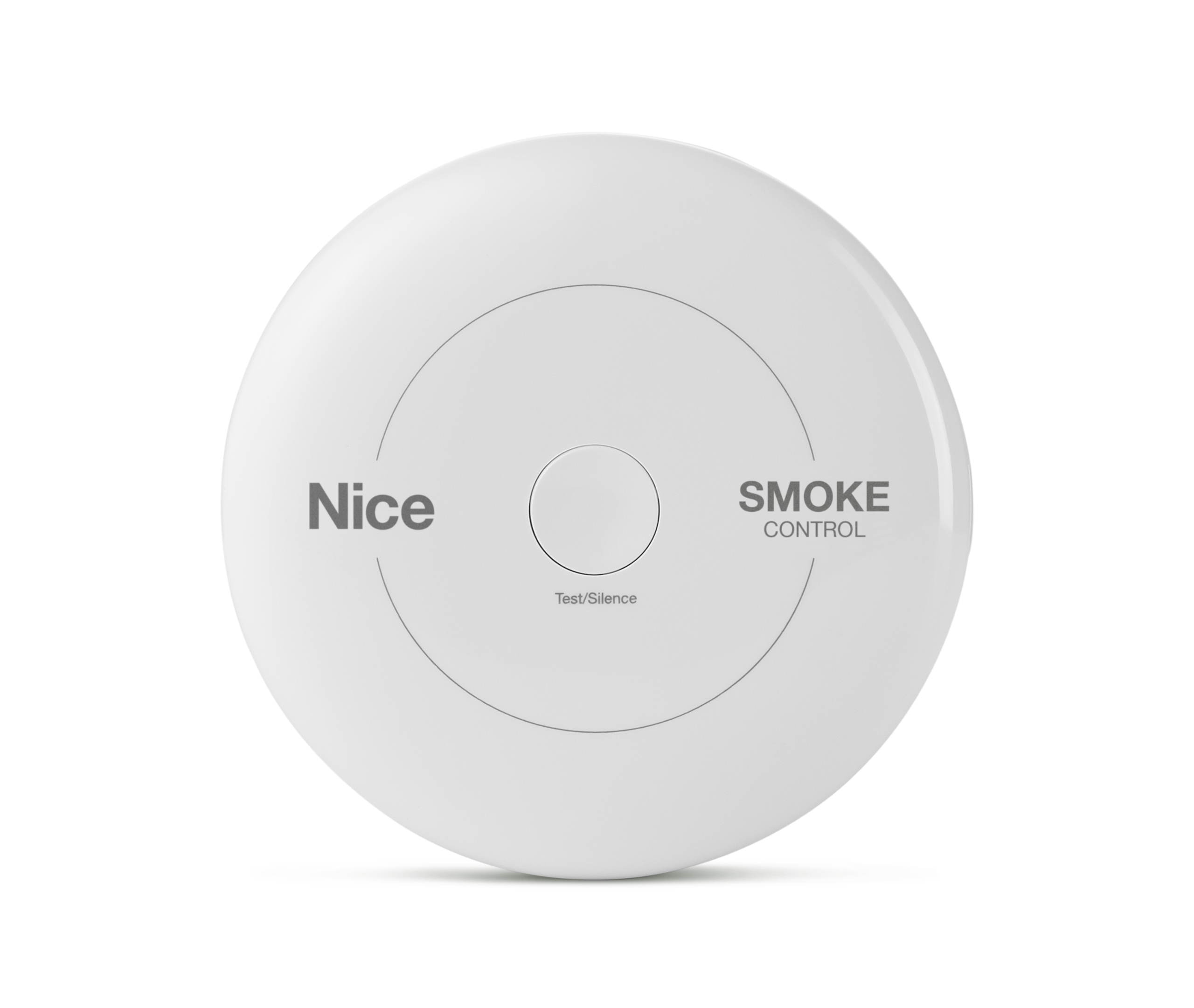

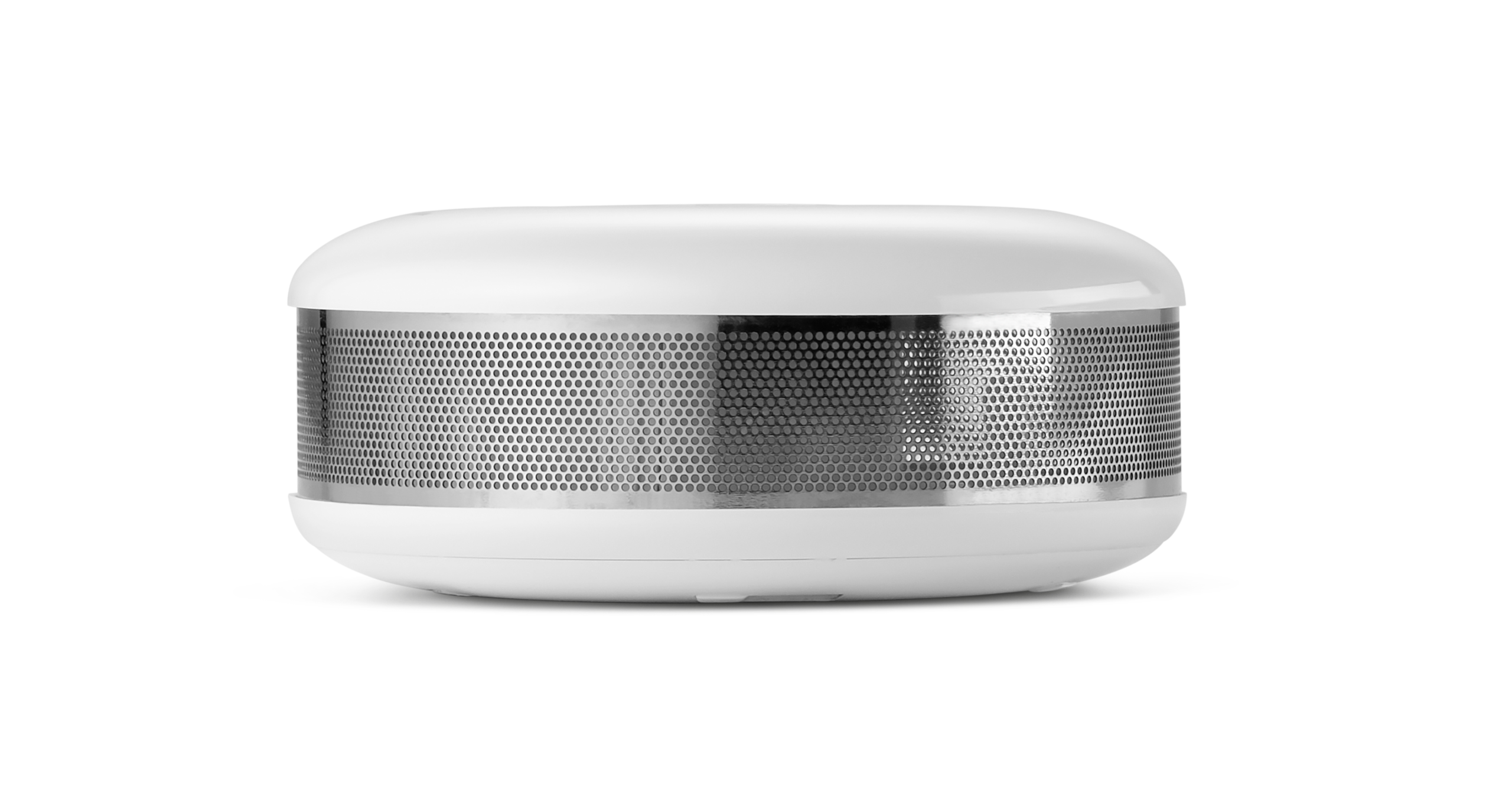

Smoke and temperature sensor.
Lightweight device with photoelectric
and temperature sensors to detect the
presence of smoke or incipient fire as early
as possible.

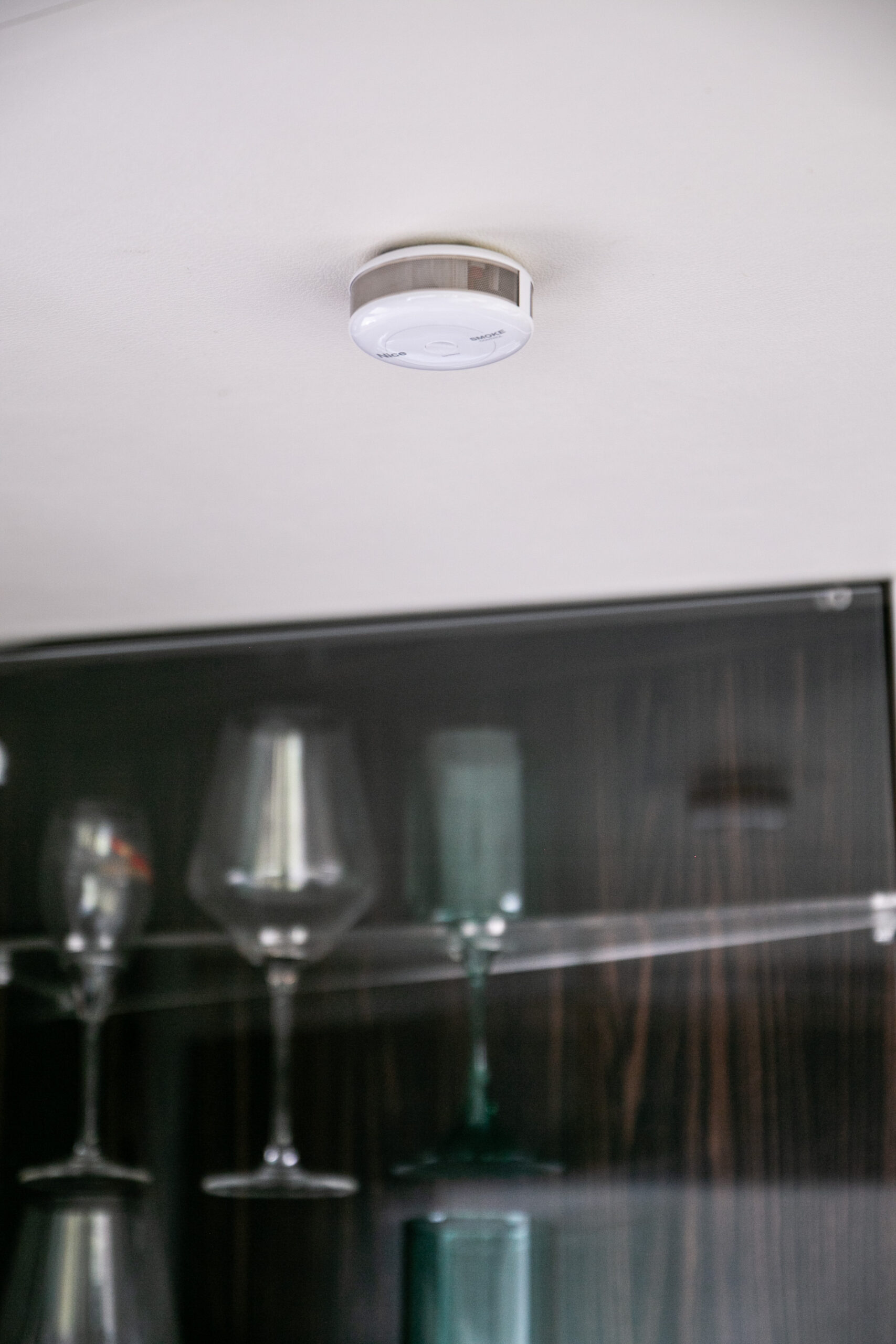

Battery powered for possible ceiling installation.
Smoke detection is indicated by an acoustic
signal, flashing LED and sending of the relevant
information to the Z-Wave network.
If the smoke sensor detects a hazardous
situation, it can initiate the alarm scenario. In this
case, the user will immediately receive an alert
on their phone, wherever they are.
The device has an integrated temperature
sensor able to activate the alarm in the
presence of high temperatures. The occupants
of the house will be alerted, even if the fire
occurs without smoke emission.
One feature making the equipment unique is the
ability to analyse data from past events, so that
similar dangers can be avoided in the future.
Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• 3 levels of sensitivity, in accordance with EN
14604:2005.
• Built-in housing opening detector.
• A safety mechanism prevents the housing
from being closed without a battery installed.
• An alarm is signalled by a loud sound, LED
indicator and message sent to the Z-Wave
network.
• An additional feature signals a rise in
temperature above a preset threshold.
• Diagnostic efficiency test every 10 seconds to
prevent possible malfunctions.
• The self-test function can be implemented
manually
• All temperature and smoke readings are
recorded in an internal memory.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
SMOKE-CONTROL Smoke and temperature sensor 1
Code SMOKE-CONTROL
Battery type CR123A 3.0V DC (included)
Operating temperature (°C Min/Max) 0 – 55
Operating humidity 0% – 93%
Temperature measurement range (°C Min/Max) -20 – 100
Precise temperature measurement. (°C) 0.5 C (within 0C – 55C range)
Smoke sensitivity level 1: 1.20 +/- 0.5% obs/ft, level 2: 1.80 +/- 0.5% obs/ft,
level 3: 2.80 +/- 0.5% obs/ft
Sound intensity level 85dB / 3m
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 (US) / 921.4, 919.8 (ANZ) / 869.0 (RU)
Complies with LVD 2006/95/EC – EMC 2004/108/EC – R&TTE 1999/5/EC –
RoHS 2011/65/EU – EN 14604:2005
Radio range (m) up to 40m (depending on building structure)
Dimensions (mm) 65 Ø x 28 h
5 in stock (can be backordered)
