Fabaro |
|---|
Hot
Flood-Control
4.900,00 ден

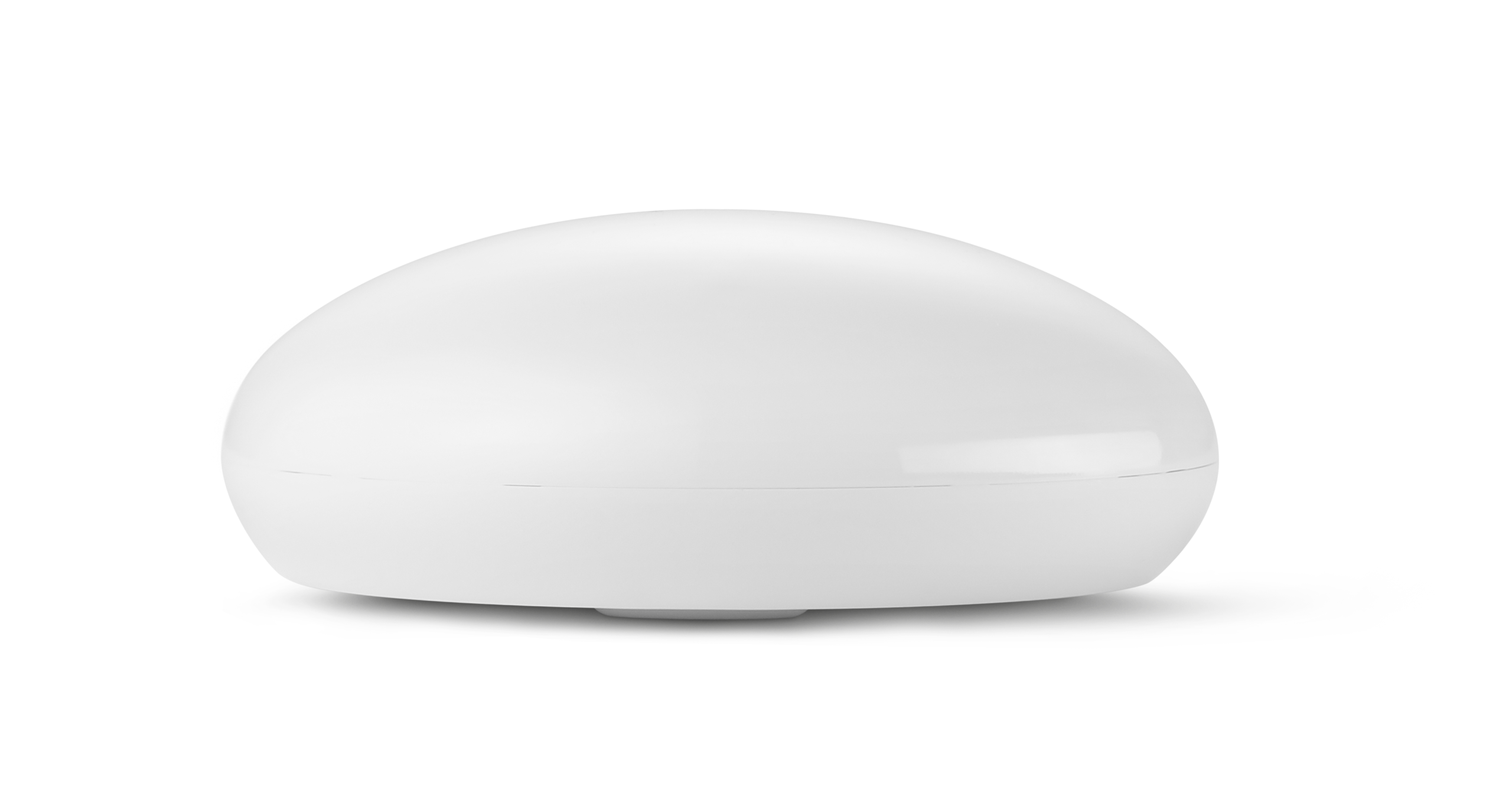

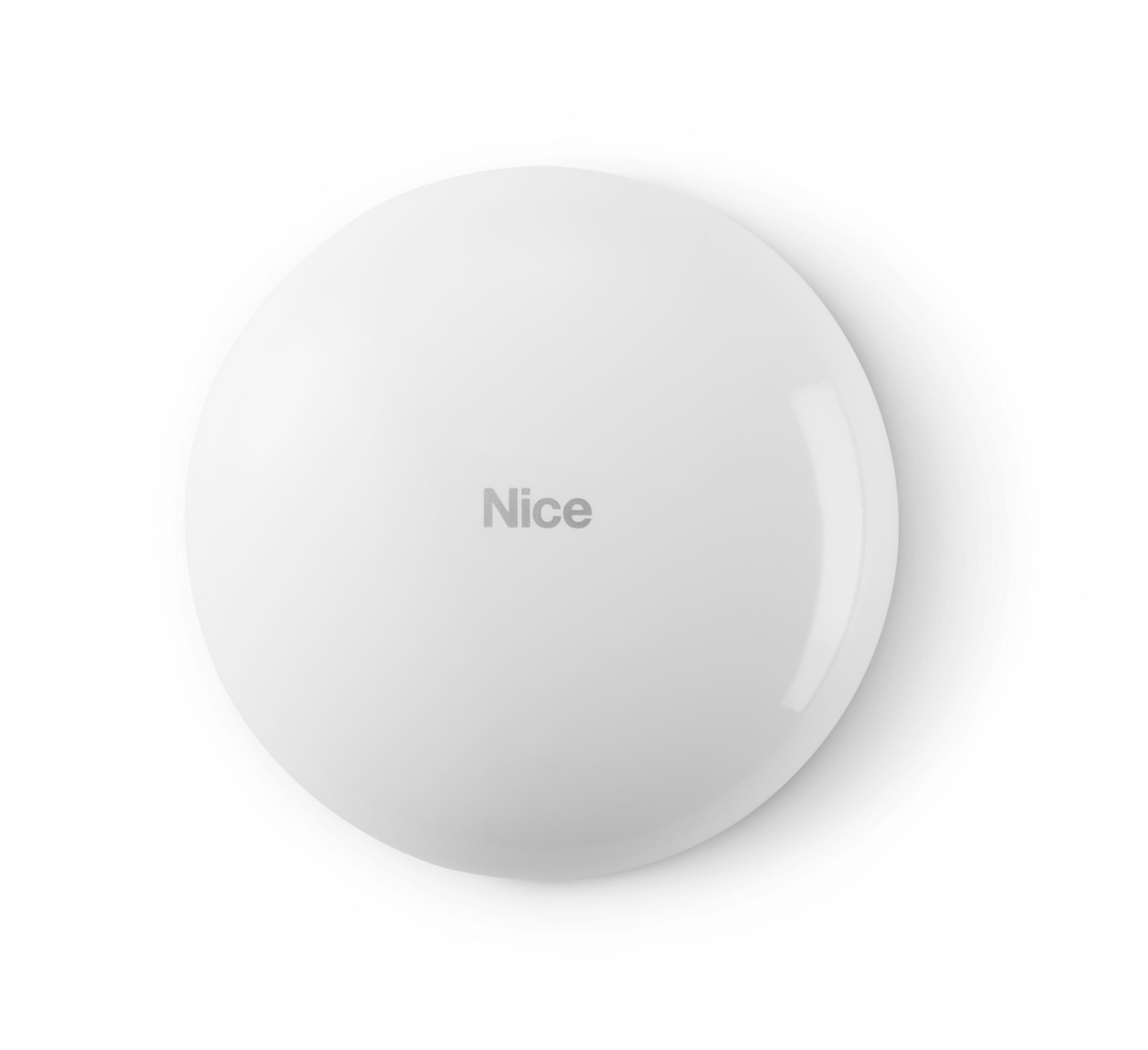

Flooding and temperature sensor
Universal flooding and temperature sensor.

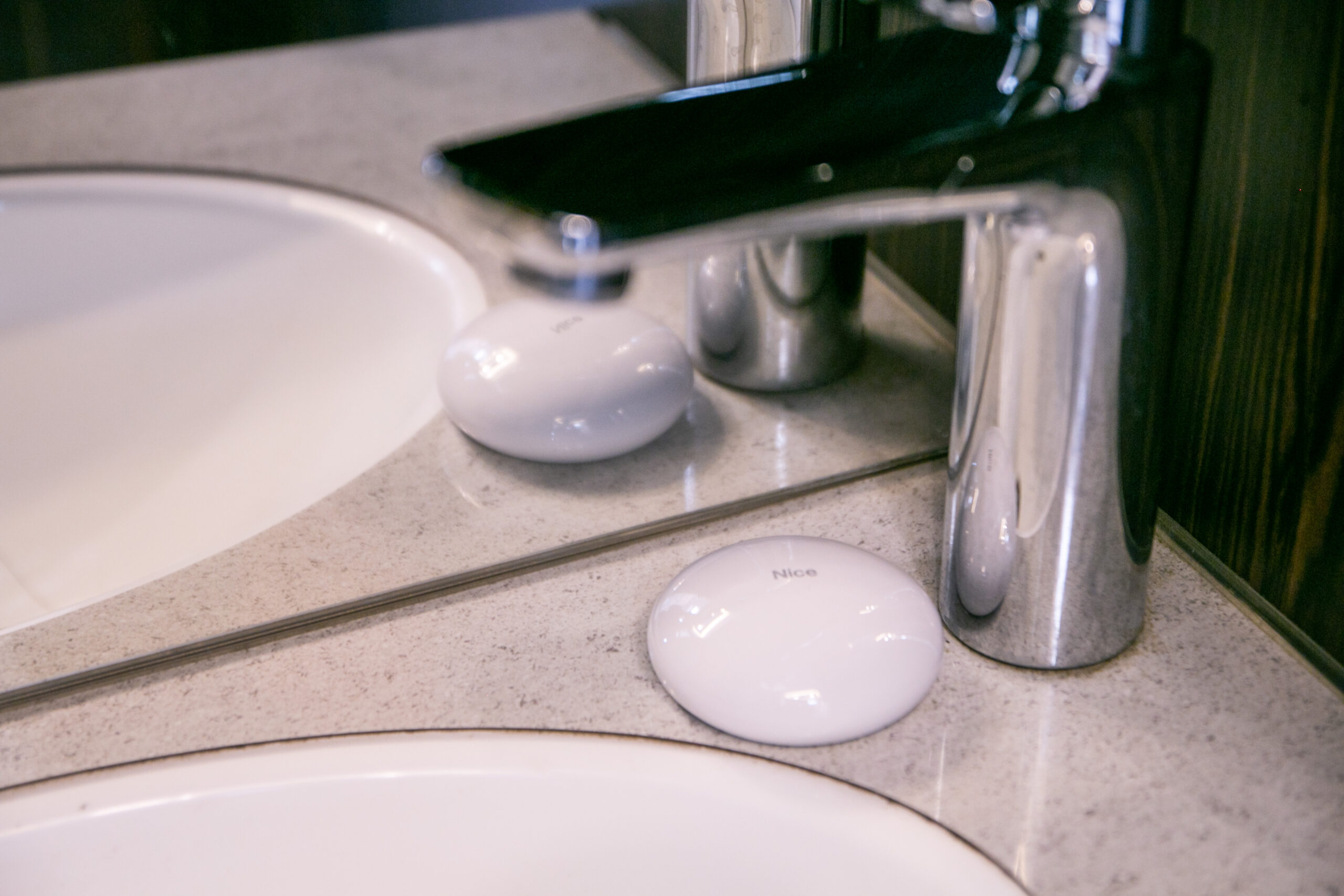

Flood-Control can be placed on a floor or
wall, using the inputs to install the probe
contacts.
The LED indicator and acoustic alarm alert
the user in the event of flooding and the tilt
sensor warns if the device is moved or tipped.
If a water leak is detected, the system (if it
includes solenoid valves) will also shut off the
water, minimising the damage caused by the
malfunction.
The LED can also be used during field testing of
the Z-Wave network.
The device can be powered by battery or cable
(12/24 VDC).

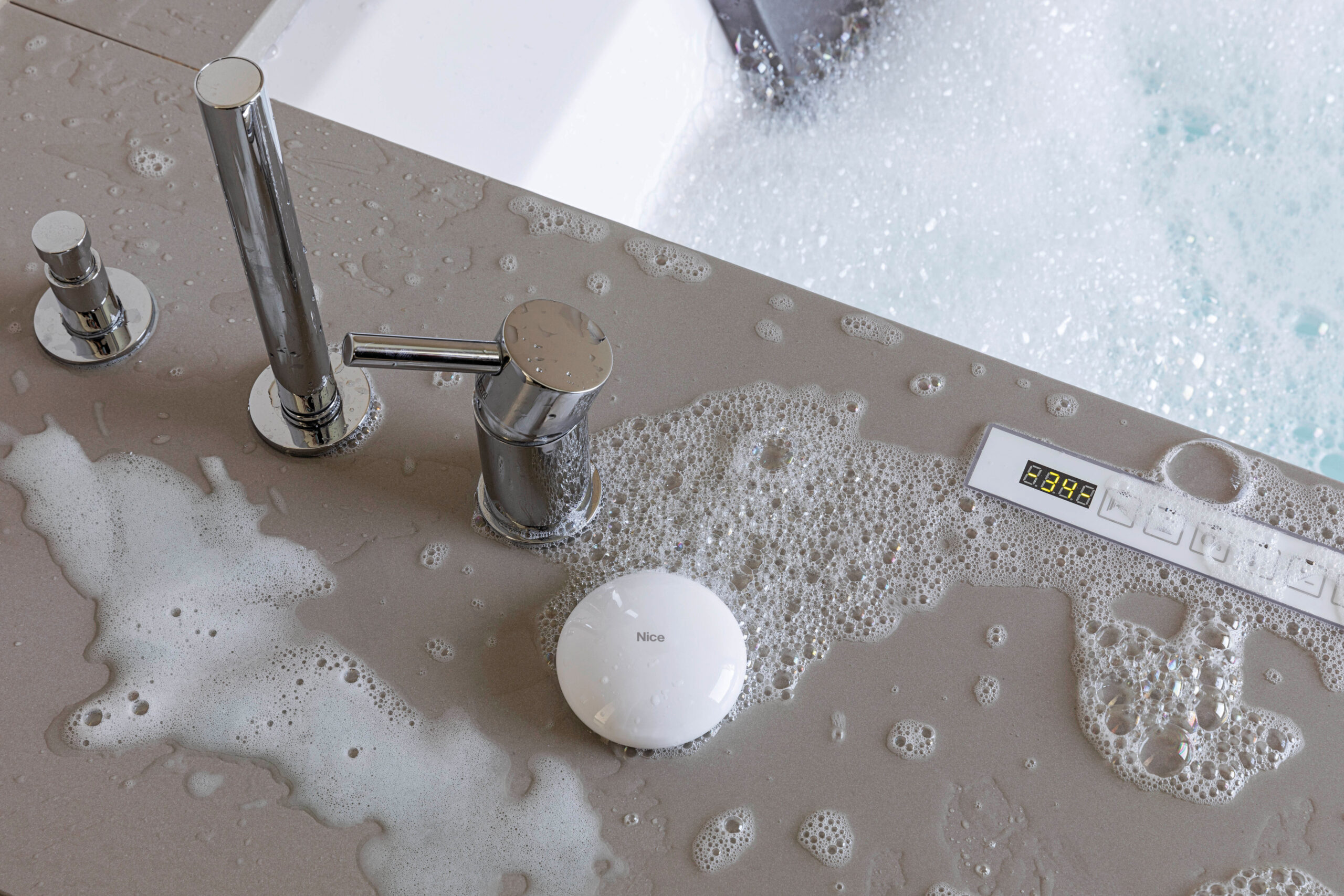

Flood-Control floats on the surface of the water,
preventing it from being submerged.Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• Unique design.
• Flooding detection and acoustic warning.
• Battery or VDC powered.
• Communicates with the Z-Wave network or
an alarm system via cable.
• With wireless update capability.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
FLOOD-CONTROL Flooding and temperature sensor 1
Code FLOOD-CONTROL
Power supply 12 – 24 VDC
Battery type CR123A (included)
Maximum voltage at output terminals 24 VDC / 20 VAC
Complies with European standards RED 2014/53/EU – RoHS 2011/65/EU
Operating temperature (°C Min/Max) 0 – 40
Temperature measurement range (°C Min/Max) -20 – 100
Precise temperature measurement. (°C) 0.5 (within 0 – 40 range)
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 MHz (US) / 921.4, 919.8 MHz
(ANZ) 869.0 MHz (RU)
Radio range (m) up to 40m (depending on building structure)
Dimensions (mm) 72 Ø x 28 h
5 in stock (can be backordered)
