Motion-Control
4.150,00 ден

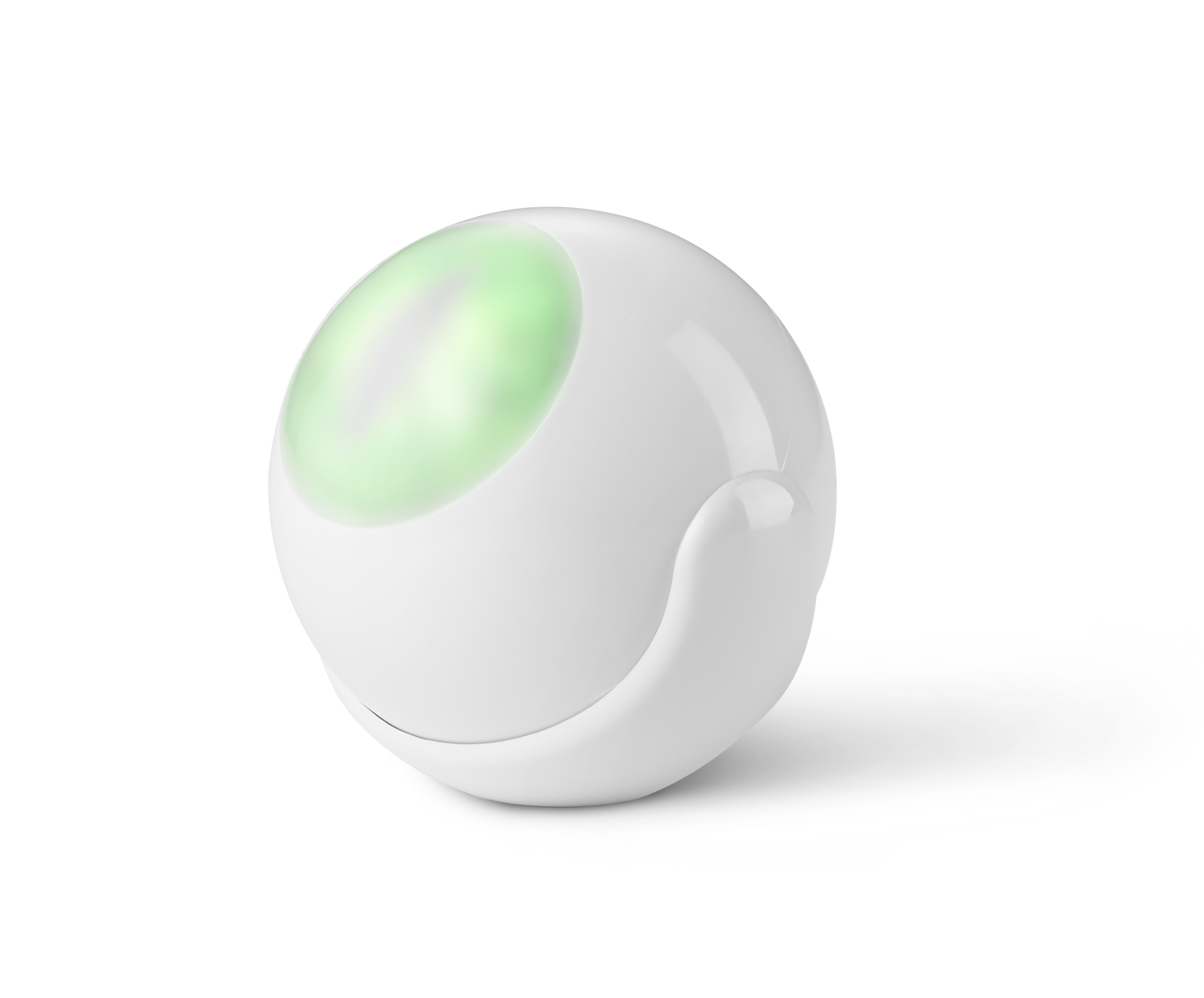

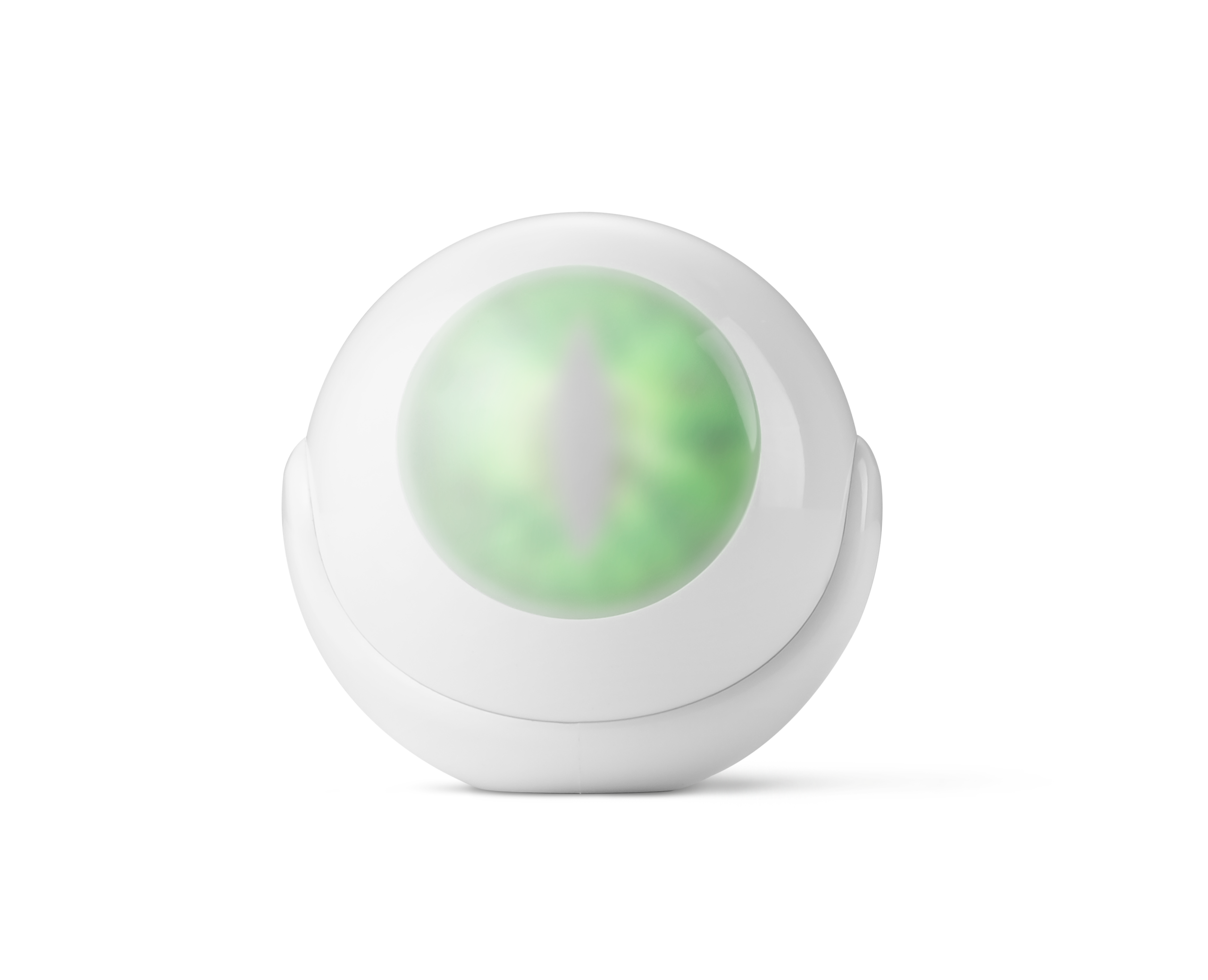

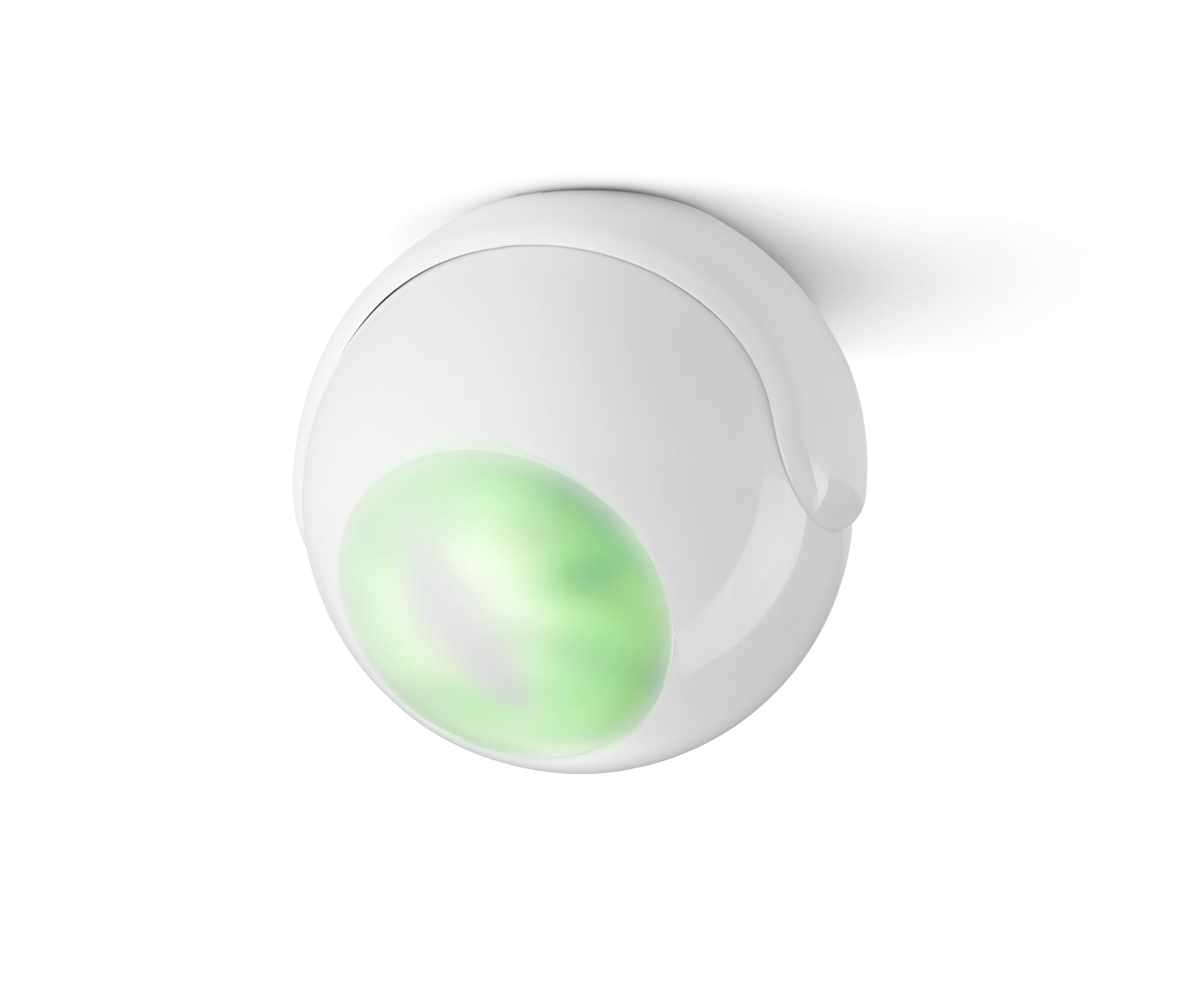

Motion, light and temperature sensor
Motion-Control multifunctional wireless
sensor can detect motion, temperature and
light intensity. It can also detect changes in
position and attempts to tamper with the outer
housing.
Motion-Control is battery powered and updated
via radio. Sensitivity can be adapted to the
user’s needs.
The built-in LED provides information on
recorded movements and temperature changes.
The available functions include a Z-Wave field
tester.

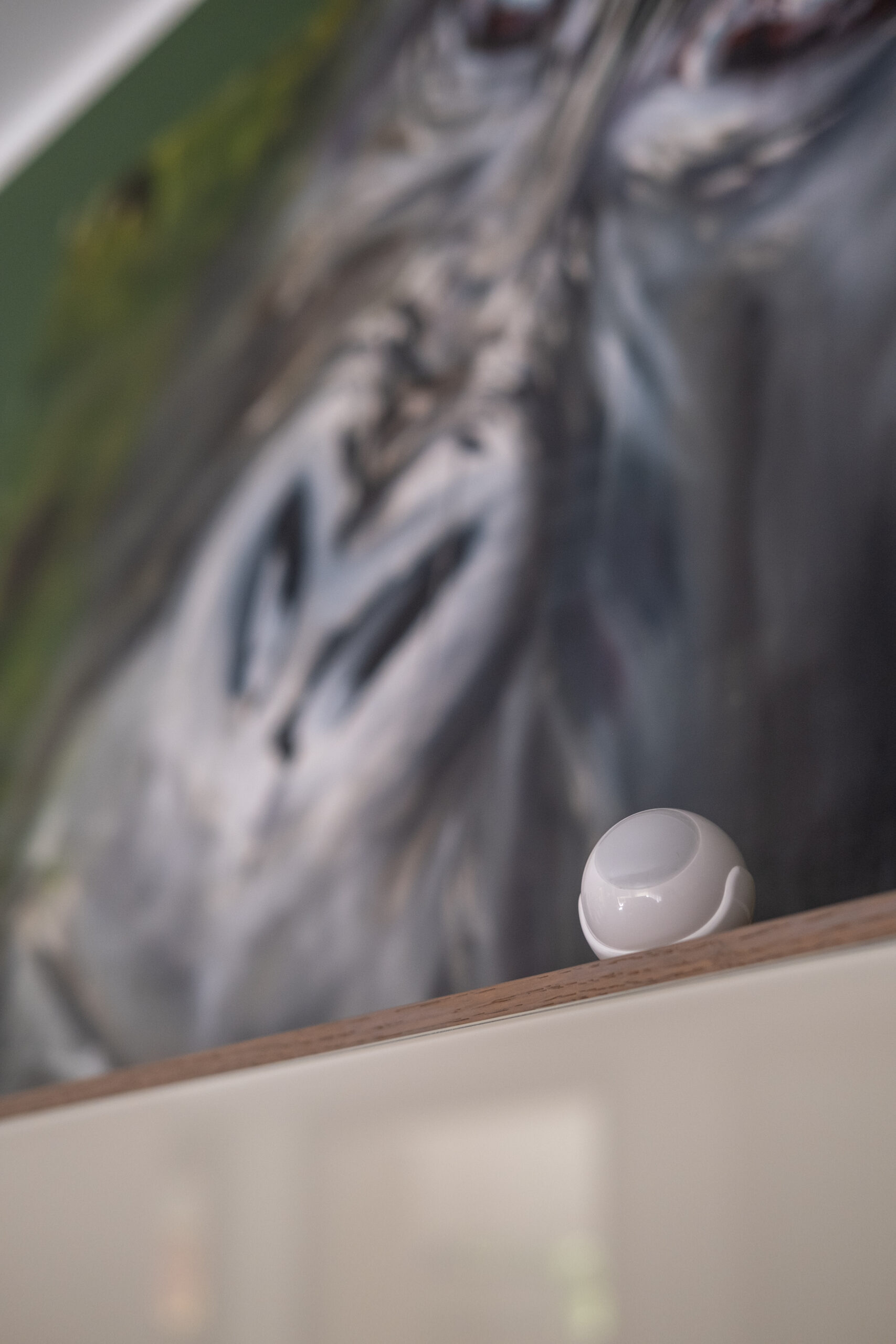

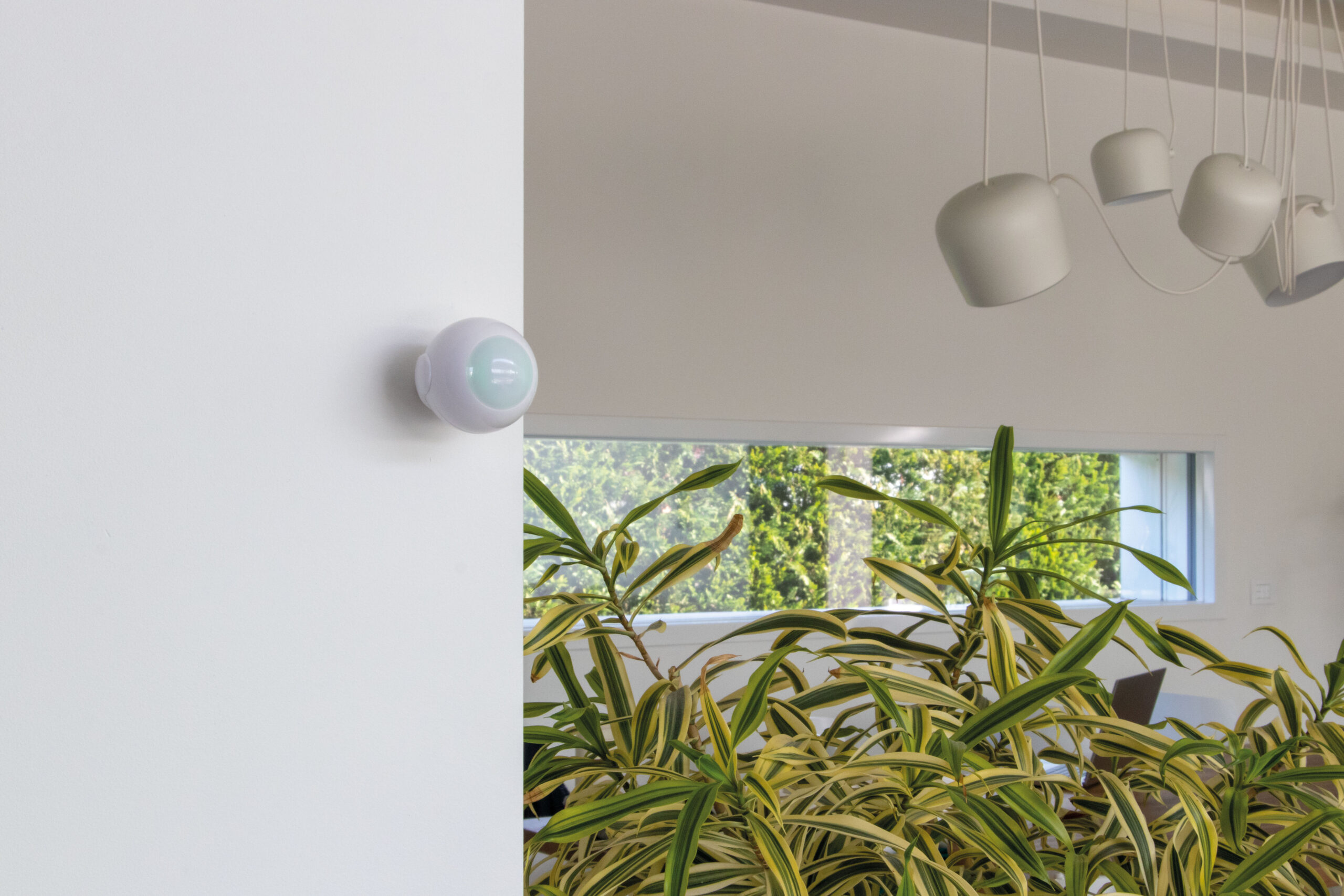

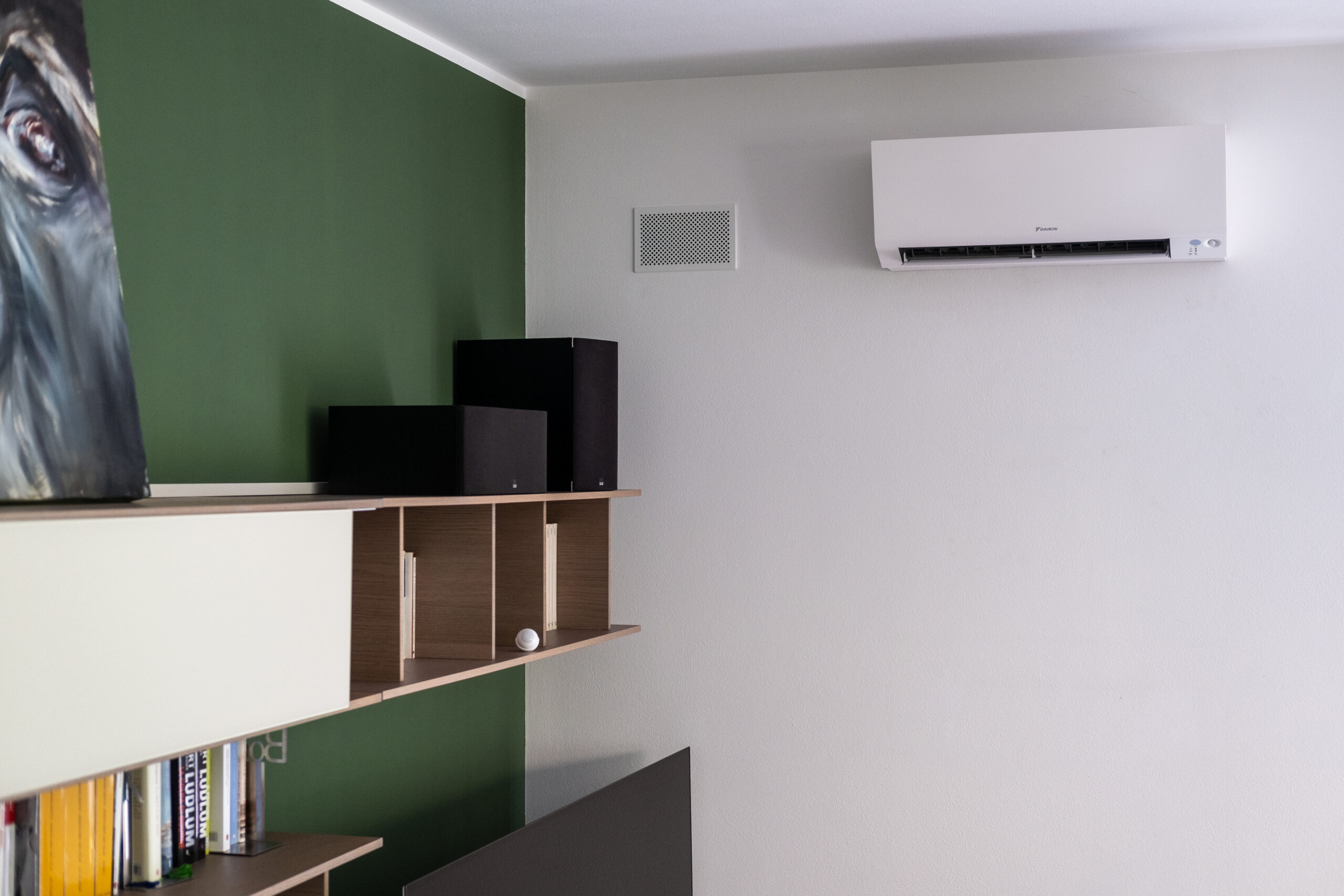

It can be installed quickly, non-invasively and
on any surface. The universal mount enables
the sensor to be located anywhere (including on
walls and ceilings).
Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• It detects even the slightest movement and
change in temperature.
• It is the only one of its kind with an earthquake
detection function.
• Battery-powered.
• Wireless communication via the Z-Wave
protocol.
• With wireless update capability.
• Supports Security Mode (Z-Wave network
security system) with AES-128 encryption.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
MOTION-CONTROL Motion, light and temperature sensor 1
Code MOTION-CONTROL
Battery type CR123A battery, 3.0 VDC (battery included)
Recommended installation height (m) >2
Operating temperature (°C Min/Max) 0 – 40
Temperature measurement range (°C Min/Max) -20 – 100
Precise temperature measurement. (°C) 0.5 (within 0 – 40 range)
Light intensity measurement threshold (LUX) 0 – 32000
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 (US) / 921.4, 919.8 (ANZ) / 869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RED 2014/53/EU – RoHS 2011/65/EU
Dimensions (mm) 56 x 56 x 58.5 h
5 in stock (can be backordered)
