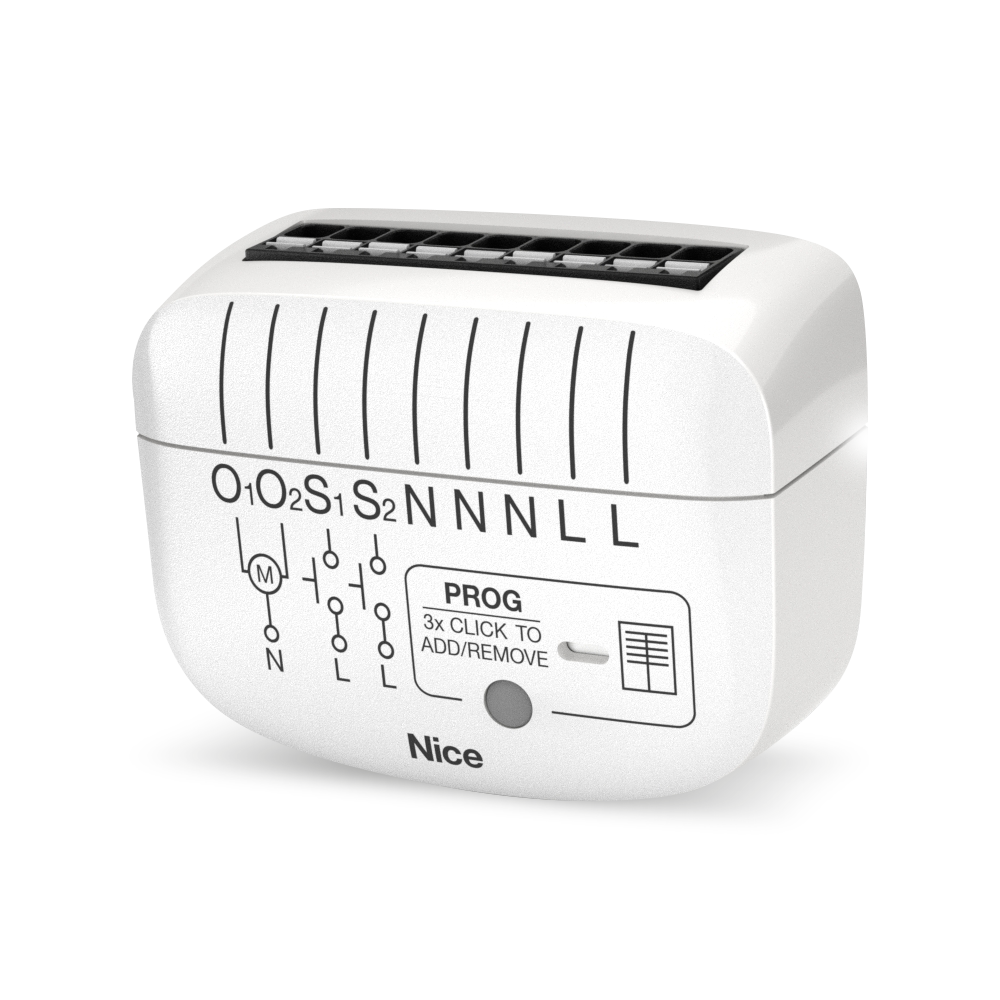

Roll-Control2
4.300,00 ден
Module for controlling rolling shutters, sun
awnings, Venetian blinds and rolling doors.
The Roll-Control2 module controls
alternating current tubular motors, such
as electric rolling shutters, sun awnings,
Venetian blinds and rolling doors.
The module lets you control the exact position
of the motors and, in the case of Venetian
blinds, the movement of the slats.
The device can measure energy consumption
and active current power.
With Roll-Control2, you can control the
connected devices either through the Z-Wave
network or via a switch or button connected
directly to it.
Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems. Works as a repeater.
• It supports Z-Wave network security modes:
S0 with AES-128 and S2 encryption.
• Authentication with PRNG encryption.
• It can be installed with tubular motors with
electronic or mechanical limit switches.
• Energy consumption measurement function.
• It works with various types of button: up-anddown, fixed-position, momentary position
toggle or rolling shutter-specific.
• Works with various types of switches and is
optimised for rolling shutter up/down buttons.
• It can be installed in wall-mounted switch
boxes.
• Wago quick connector and additional
terminals available for even faster installation.
• Setup wizard also from a smartphone.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
ROLL-CONTROL2 Tubular motor control module 1
Code ROLL-CONTROL2
Input power 100-240V~50/60Hz
Rated load current 2 A
Type of load supported single-phase AC
Operating temperature (°C Min/Max) 0 – 35
For installation in wall-mounted boxes (mm) Ø >= 50, depth >= 60
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.85 (EU) 921.4 or 919.8 (ANZ)
Radio range (m) up to 100 m outdoors, up to 30 m indoors (depending on building structure)
Compliant with European directives RoHS 2011/65/EU – RED 2014/53/EU
Dimensions (mm) 46 x 36 x 19.9 h
5 in stock (can be backordered)
Additional information
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Yubii Home
The gateway that manages and communicates
with all smart devices in your home.Yubii Home is the heart of the smart home,
a hub that takes care of the comfort and
safety of the whole family:
• It receives data from the sensors, processes
it and operates the automations accordingly
based on your preferences.
• It can integrate and control lights, rolling shutters, gates, doors and windows, household
appliances, heating and irrigation systems
and multimedia devices, as well as detect
water leaks, carbon monoxide and fires.
Yubii Home guarantees just the right level
of comfort and control in every room,
tailored to the needs of its occupants.
The home becomes a perfect, safe, smart and
comfortable environment that can be managed
through automated scenarios, voice control
and from smartphone, tablets and smart
watches.
Yubii Home lets you manage natural and artificial
light and heating intelligently and, by
monitoring electrical loads, it can also help
boost your home’s energy efficiency.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
YH-001 Yubii Home Gateway 1
Code YH-001
Power supply 5V DC, max. 1A (adapter included)
Operating temperature 0-40°C
Operating humidity max. 75% relative humidity (without condensate)
Power connector USB Micro B
Dimensions 178x110x31 mm
RADIO COMMUNICATION
Protocol Radio frequency Maximum transmission power
Z-Wave
(700 series)
868.0-868.6 MHz
869.7-870.0 MHz +9 dBm
Wi-Fi
(802.11 b/g/n) 2400.0-2483.5 MHz +20 dBm
433 MHz 433.05-434.04 MHz +9 dBm
868 MHz 868.0-869.65 MHz +5 dBm
DoubleDimmer-Control
Universal module to regulate light intensity,
compatible with a range of light sources
DoubleDimmer-Control can be used as a
dimmer or switch in three-wire systems.
The device can adjust light intensity according
to preference and situation.
DoubleDimmer-Control measures energy
consumption and active current power and
voltage, while the safety mechanisms protect
against overheating, overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
It also supports personalized calibration and
allows the outputs to be configured either
separately (2×70W) or combined to deliver up to
140W on a single output.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
DoubleDimmer-Control works with the
following sources:
• 220–240 V dimmable and non-dimmable LED
loads (bulbs)
• 12–24 V LED or halogens with dimmable
electronic transformers
• Dimmable LED drivers (for example, in LED
strips
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DOUBLEDIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DOUBLEDIMMER-CONTROL
Input power 220-240V~50/60Hz
Output power 70W per channel (LED Power Factor =1)
or 1x140W (connected outputs)
Operating temperature (°C Min/Max) 0 - 40
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 919.8 or 921.4 (AH)
Radio range (m) up to 100 m outdoors, up to 30 m indoors
(depending on building structure)
Compliant with European directives RoHS 2011/65/EU, 2015/863/EU - RED 2014/53/EU
Dimensions (mm) 45 x 37 x 20 h
SingleSwitch-Control
Single-channel switch module
SingleSwitch-Control is the perfect solution
for controlling switches or electrical devices over the network; designed for standard housings for simple installation, it enables
activity to be controlled via the Z-Wave network
or with a practical switch.
Small but effective, it also functions as a Z-Wave
signal repeater.
With SingleSwitch-Control, energy consumption
can also be monitored remotely, as it is compatible with any Z-Wave protocol or Z-Wave+
Controller system.
Main features:
• Works with various types of wall-mounted
switches and buttons.
• Supports Z-Wave network security modes:
S0 with AES-128 encryption and S2
authenticated encryption.
• Works as a Z-Wave signal repeater.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
SINGLESWITCH-CONTROL Single-channel switch module 1
Code SINGLESWITCH-CONTROL
Input power 100-240V~50/60Hz
Rated current load (resistive loads only) 8 A per 240 V~ (6.5 A per 120 V~)
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes (mm) Ø >= 50, depth >= 60
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 869.0 (RU)
Radio range (m) up to 50 m outdoors, up to 40 m indoors
(depending on building structure)
Max. transmitted power (dBm) 6
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
On/Off-Control2
Two-channel switch module.
The On/Off-Control2 is installed in a wallmounted box and can control two devices
with maximum total power of 2300W
(2x1150W) for resistive/incandescent loads
or 160W (2x80W) for LED loads.
It can be turned on either remotely via the
mobile app, or via a traditional wall switch.
The device can measure energy consumption
and active current power and mains voltage.
Supported device type:
• Incandescent bulbs
• LEDs
• Conductors
• Fluorescent lamps
• Electronic transformers
• Ferromagnetic transformers
• Halogens
• Other electronical appliances matching the
devices electrical specifications, f.e. TV's,
sound systems, coffee makers etc.
Main features:
• Compatible with Z-Wave+ and Z-Wave
controllers. Works also as a repeater.
• Supports secure mode (Z-Wave network
security mode): S0 with AES-128 and S2
encryption.
• Autentication with PRNG encryption.
• Advanced microprocessor control.
• Active power, energy and mains voltage
measurement function.
• Works with various types of switches.
• Works with LED loads.
• Simultaneous or independent outputs control.
• Spring-based quick connector and additional
terminals available for even faster installation.
• First configuration creator (wizard), easy
devices grouping and Auto-Off function, all
conveniently managed through the Yubii
Home app.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
ON/OFF-CONTROL2 Two-channel switch module 1
Code ON/OFF-CONTROL2
Input power 100-240V~50/60Hz
Nominal resistive/incandesent bulbs/halogens channel current 2 x 5A (10A overall)
Nominal LED/fluorescent lamp real power 2 x 80W
Nominal electronic transformers (LED/CCFL External
Ballast Lamp) channel current 2 x 2A
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes (mm) Ø >= 50, depth >= 60
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 919.8 or 921.4 (AH)
Radio range (m) up to 100m outdoors, up to 30m indoors
(depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 46 x 36 x 19.9 h
Flood-Control
Flooding and temperature sensor
Universal flooding and temperature sensor.
Flood-Control can be placed on a floor or
wall, using the inputs to install the probe
contacts.
The LED indicator and acoustic alarm alert
the user in the event of flooding and the tilt
sensor warns if the device is moved or tipped.
If a water leak is detected, the system (if it
includes solenoid valves) will also shut off the
water, minimising the damage caused by the
malfunction.
The LED can also be used during field testing of
the Z-Wave network.
The device can be powered by battery or cable
(12/24 VDC).
Flood-Control floats on the surface of the water,
preventing it from being submerged.Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• Unique design.
• Flooding detection and acoustic warning.
• Battery or VDC powered.
• Communicates with the Z-Wave network or
an alarm system via cable.
• With wireless update capability.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
FLOOD-CONTROL Flooding and temperature sensor 1
Code FLOOD-CONTROL
Power supply 12 - 24 VDC
Battery type CR123A (included)
Maximum voltage at output terminals 24 VDC / 20 VAC
Complies with European standards RED 2014/53/EU - RoHS 2011/65/EU
Operating temperature (°C Min/Max) 0 - 40
Temperature measurement range (°C Min/Max) -20 - 100
Precise temperature measurement. (°C) 0.5 (within 0 - 40 range)
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 MHz (US) / 921.4, 919.8 MHz
(ANZ) 869.0 MHz (RU)
Radio range (m) up to 40m (depending on building structure)
Dimensions (mm) 72 Ø x 28 h
Dimmer-Control
Universal module to regulate light intensity,
compatible with a range of light sources.
Dimmer-Control can be used as a dimmer
or switch in both two-wire and three-wire
systems.
The device can adjust light intensity according
to preference and situation.
Dimmer-Control measures energy consumption
and active current power, while the safety
mechanisms protect against overheating,
overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
Dimmer-Control works with the following
sources:
• 230V incandescent or halogen bulbs.
• ELV halogen lamps and dimmable LED bulbs
(with electronic transformer).
• MLV halogen lamps (with transformer).
• LED bulbs with adjustable brightness.
• Compact fluorescent tubes with adjustable
brightness.
• Dimmable light sources (power factor > 0.5)
with a minimum power of 5VA (depending on
type of load)*.
Excluding dimming function, compatible
with:
• Compact fluorescent (CFL) bulbs with
electronic ballast.
• Fluorescent lamps with electronic ballast.
• LED bulbs (power factor >0.7).
• Supported light sources (power factor >0.5)
with a minimum power of 5VA (depending on
type of load)*.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DIMMER-CONTROL
Input power 220-240V~50Hz
Output power 50-250W (resistive load)
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (ANZ)
869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
RGBW-Control
Smart module to control light colour.
The RGBW-Control module provides
remote control of RGB and RGBW LEDs,
halogen lighting and fans.
The connected receivers can be powered with
12V or 24V.
The module provides simple lighting control
and light colour change through the Yubii Home
application. It can manage up to four 0-10V
analogue sensors (temperature, humidity,
wind, air quality, radiation, etc.). The colour of
the lighting in the home can also be changed,
depending on the weather or time of day.
With a minimal design, the RGBW-Control
module lets you regulate the colour of the
lighting in your home. Through the app or voice commands, you
can change the light and create the right
atmosphere for work, relaxation or well-being.
Main features:
• Measurement of present and past energy
consumption.
• Controlled through other Nice devices or any
Z-Wave controller.
• Microprocessor controlled.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
RGBW-CONTROL Universal RGB/RGBW lighting control module 1
Code RGBW-CONTROL
Input power 12-24V
Rated load current (resistive load only) 8 A for 240 V~ (6.5 A for 120 V~)
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (ANZ)
869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
Reviews
There are no reviews yet.
