| Brand |
Fabaro |
|---|
Hot

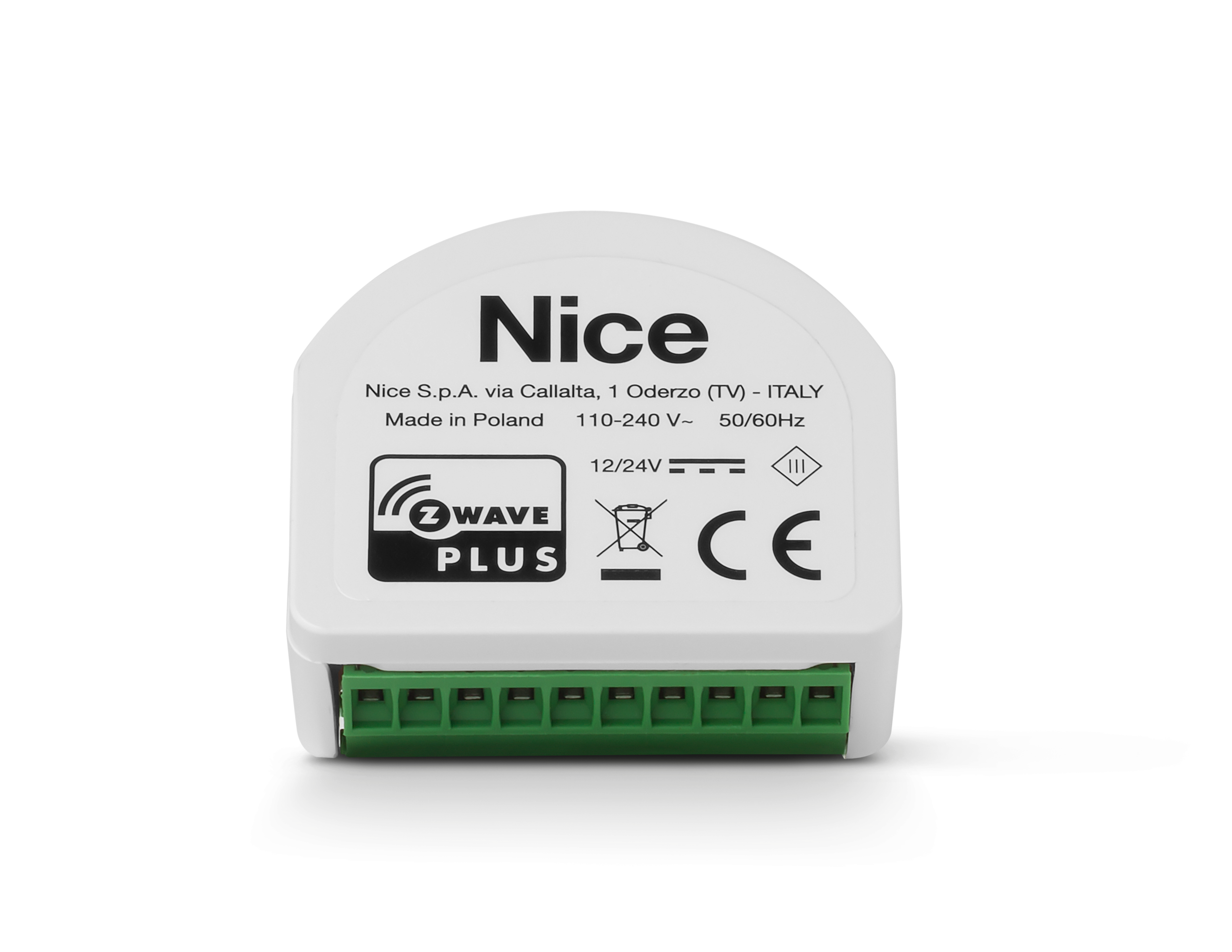

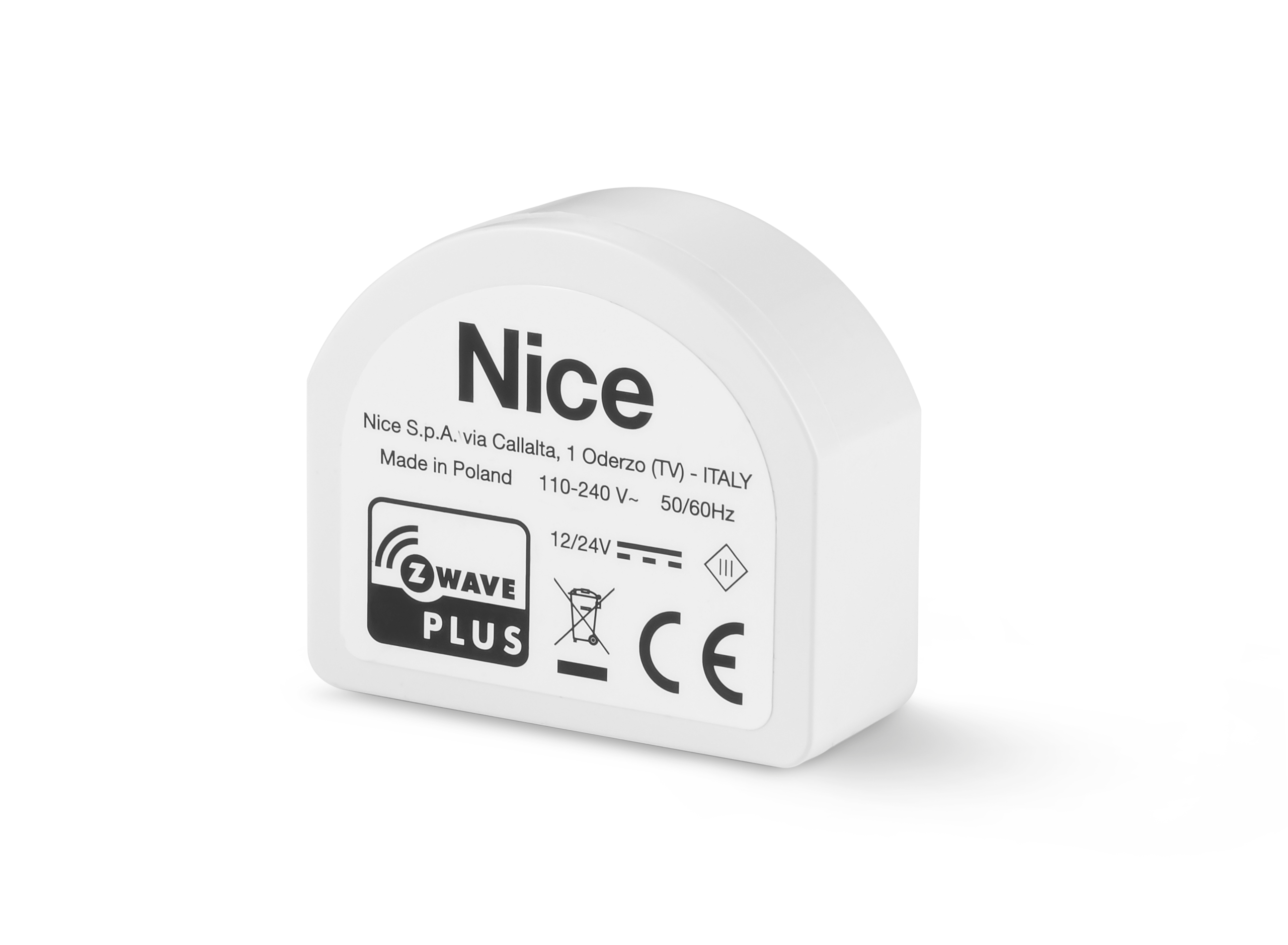

RGBW-Control
4.300,00 ден
Smart module to control light colour.
The RGBW-Control module provides
remote control of RGB and RGBW LEDs,
halogen lighting and fans.
The connected receivers can be powered with
12V or 24V.
The module provides simple lighting control
and light colour change through the Yubii Home
application. It can manage up to four 0-10V
analogue sensors (temperature, humidity,
wind, air quality, radiation, etc.). The colour of
the lighting in the home can also be changed,
depending on the weather or time of day.
With a minimal design, the RGBW-Control
module lets you regulate the colour of the
lighting in your home. Through the app or voice commands, you
can change the light and create the right
atmosphere for work, relaxation or well-being.
Main features:
• Measurement of present and past energy
consumption.
• Controlled through other Nice devices or any
Z-Wave controller.
• Microprocessor controlled.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
RGBW-CONTROL Universal RGB/RGBW lighting control module 1
Code RGBW-CONTROL
Input power 12-24V
Rated load current (resistive load only) 8 A for 240 V~ (6.5 A for 120 V~)
Operating temperature (°C Min/Max) 0 – 35
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (ANZ)
869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RoHS 2011/65/EU – RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
5 in stock (can be backordered)
Additional information
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
Yubii Home
The gateway that manages and communicates
with all smart devices in your home.Yubii Home is the heart of the smart home,
a hub that takes care of the comfort and
safety of the whole family:
• It receives data from the sensors, processes
it and operates the automations accordingly
based on your preferences.
• It can integrate and control lights, rolling shutters, gates, doors and windows, household
appliances, heating and irrigation systems
and multimedia devices, as well as detect
water leaks, carbon monoxide and fires.
Yubii Home guarantees just the right level
of comfort and control in every room,
tailored to the needs of its occupants.
The home becomes a perfect, safe, smart and
comfortable environment that can be managed
through automated scenarios, voice control
and from smartphone, tablets and smart
watches.
Yubii Home lets you manage natural and artificial
light and heating intelligently and, by
monitoring electrical loads, it can also help
boost your home’s energy efficiency.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
YH-001 Yubii Home Gateway 1
Code YH-001
Power supply 5V DC, max. 1A (adapter included)
Operating temperature 0-40°C
Operating humidity max. 75% relative humidity (without condensate)
Power connector USB Micro B
Dimensions 178x110x31 mm
RADIO COMMUNICATION
Protocol Radio frequency Maximum transmission power
Z-Wave
(700 series)
868.0-868.6 MHz
869.7-870.0 MHz +9 dBm
Wi-Fi
(802.11 b/g/n) 2400.0-2483.5 MHz +20 dBm
433 MHz 433.05-434.04 MHz +9 dBm
868 MHz 868.0-869.65 MHz +5 dBm
DoubleDimmer-Control
Universal module to regulate light intensity,
compatible with a range of light sources
DoubleDimmer-Control can be used as a
dimmer or switch in three-wire systems.
The device can adjust light intensity according
to preference and situation.
DoubleDimmer-Control measures energy
consumption and active current power and
voltage, while the safety mechanisms protect
against overheating, overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
It also supports personalized calibration and
allows the outputs to be configured either
separately (2×70W) or combined to deliver up to
140W on a single output.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
DoubleDimmer-Control works with the
following sources:
• 220–240 V dimmable and non-dimmable LED
loads (bulbs)
• 12–24 V LED or halogens with dimmable
electronic transformers
• Dimmable LED drivers (for example, in LED
strips
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DOUBLEDIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DOUBLEDIMMER-CONTROL
Input power 220-240V~50/60Hz
Output power 70W per channel (LED Power Factor =1)
or 1x140W (connected outputs)
Operating temperature (°C Min/Max) 0 - 40
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 919.8 or 921.4 (AH)
Radio range (m) up to 100 m outdoors, up to 30 m indoors
(depending on building structure)
Compliant with European directives RoHS 2011/65/EU, 2015/863/EU - RED 2014/53/EU
Dimensions (mm) 45 x 37 x 20 h
Smoke-Control
Smoke and temperature sensor.
Lightweight device with photoelectric
and temperature sensors to detect the
presence of smoke or incipient fire as early
as possible.
Battery powered for possible ceiling installation.
Smoke detection is indicated by an acoustic
signal, flashing LED and sending of the relevant
information to the Z-Wave network.
If the smoke sensor detects a hazardous
situation, it can initiate the alarm scenario. In this
case, the user will immediately receive an alert
on their phone, wherever they are.
The device has an integrated temperature
sensor able to activate the alarm in the
presence of high temperatures. The occupants
of the house will be alerted, even if the fire
occurs without smoke emission.
One feature making the equipment unique is the
ability to analyse data from past events, so that
similar dangers can be avoided in the future.
Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• 3 levels of sensitivity, in accordance with EN
14604:2005.
• Built-in housing opening detector.
• A safety mechanism prevents the housing
from being closed without a battery installed.
• An alarm is signalled by a loud sound, LED
indicator and message sent to the Z-Wave
network.
• An additional feature signals a rise in
temperature above a preset threshold.
• Diagnostic efficiency test every 10 seconds to
prevent possible malfunctions.
• The self-test function can be implemented
manually
• All temperature and smoke readings are
recorded in an internal memory.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
SMOKE-CONTROL Smoke and temperature sensor 1
Code SMOKE-CONTROL
Battery type CR123A 3.0V DC (included)
Operating temperature (°C Min/Max) 0 - 55
Operating humidity 0% - 93%
Temperature measurement range (°C Min/Max) -20 - 100
Precise temperature measurement. (°C) 0.5 C (within 0C - 55C range)
Smoke sensitivity level 1: 1.20 +/- 0.5% obs/ft, level 2: 1.80 +/- 0.5% obs/ft,
level 3: 2.80 +/- 0.5% obs/ft
Sound intensity level 85dB / 3m
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 (US) / 921.4, 919.8 (ANZ) / 869.0 (RU)
Complies with LVD 2006/95/EC - EMC 2004/108/EC - R&TTE 1999/5/EC -
RoHS 2011/65/EU - EN 14604:2005
Radio range (m) up to 40m (depending on building structure)
Dimensions (mm) 65 Ø x 28 h
Motion-Control
Motion, light and temperature sensor
Motion-Control multifunctional wireless
sensor can detect motion, temperature and
light intensity. It can also detect changes in
position and attempts to tamper with the outer
housing.
Motion-Control is battery powered and updated
via radio. Sensitivity can be adapted to the
user’s needs.
The built-in LED provides information on
recorded movements and temperature changes.
The available functions include a Z-Wave field
tester.
It can be installed quickly, non-invasively and
on any surface. The universal mount enables
the sensor to be located anywhere (including on
walls and ceilings).
Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• It detects even the slightest movement and
change in temperature.
• It is the only one of its kind with an earthquake
detection function.
• Battery-powered.
• Wireless communication via the Z-Wave
protocol.
• With wireless update capability.
• Supports Security Mode (Z-Wave network
security system) with AES-128 encryption.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
MOTION-CONTROL Motion, light and temperature sensor 1
Code MOTION-CONTROL
Battery type CR123A battery, 3.0 VDC (battery included)
Recommended installation height (m) >2
Operating temperature (°C Min/Max) 0 - 40
Temperature measurement range (°C Min/Max) -20 - 100
Precise temperature measurement. (°C) 0.5 (within 0 - 40 range)
Light intensity measurement threshold (LUX) 0 - 32000
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 (US) / 921.4, 919.8 (ANZ) / 869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RED 2014/53/EU - RoHS 2011/65/EU
Dimensions (mm) 56 x 56 x 58.5 h
Dimmer-Control
Universal module to regulate light intensity,
compatible with a range of light sources.
Dimmer-Control can be used as a dimmer
or switch in both two-wire and three-wire
systems.
The device can adjust light intensity according
to preference and situation.
Dimmer-Control measures energy consumption
and active current power, while the safety
mechanisms protect against overheating,
overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
Dimmer-Control works with the following
sources:
• 230V incandescent or halogen bulbs.
• ELV halogen lamps and dimmable LED bulbs
(with electronic transformer).
• MLV halogen lamps (with transformer).
• LED bulbs with adjustable brightness.
• Compact fluorescent tubes with adjustable
brightness.
• Dimmable light sources (power factor > 0.5)
with a minimum power of 5VA (depending on
type of load)*.
Excluding dimming function, compatible
with:
• Compact fluorescent (CFL) bulbs with
electronic ballast.
• Fluorescent lamps with electronic ballast.
• LED bulbs (power factor >0.7).
• Supported light sources (power factor >0.5)
with a minimum power of 5VA (depending on
type of load)*.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DIMMER-CONTROL
Input power 220-240V~50Hz
Output power 50-250W (resistive load)
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (ANZ)
869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
Reviews
There are no reviews yet.
