Dimmer-Control
Universal module to regulate light intensity,
compatible with a range of light sources.
Dimmer-Control can be used as a dimmer
or switch in both two-wire and three-wire
systems.
The device can adjust light intensity according
to preference and situation.
Dimmer-Control measures energy consumption
and active current power, while the safety
mechanisms protect against overheating,
overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
Dimmer-Control works with the following
sources:
• 230V incandescent or halogen bulbs.
• ELV halogen lamps and dimmable LED bulbs
(with electronic transformer).
• MLV halogen lamps (with transformer).
• LED bulbs with adjustable brightness.
• Compact fluorescent tubes with adjustable
brightness.
• Dimmable light sources (power factor > 0.5)
with a minimum power of 5VA (depending on
type of load)*.
Excluding dimming function, compatible
with:
• Compact fluorescent (CFL) bulbs with
electronic ballast.
• Fluorescent lamps with electronic ballast.
• LED bulbs (power factor >0.7).
• Supported light sources (power factor >0.5)
with a minimum power of 5VA (depending on
type of load)*.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DIMMER-CONTROL
Input power 220-240V~50Hz
Output power 50-250W (resistive load)
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (ANZ)
869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
DoubleDimmer-Control
Universal module to regulate light intensity,
compatible with a range of light sources
DoubleDimmer-Control can be used as a
dimmer or switch in three-wire systems.
The device can adjust light intensity according
to preference and situation.
DoubleDimmer-Control measures energy
consumption and active current power and
voltage, while the safety mechanisms protect
against overheating, overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
It also supports personalized calibration and
allows the outputs to be configured either
separately (2×70W) or combined to deliver up to
140W on a single output.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
DoubleDimmer-Control works with the
following sources:
• 220–240 V dimmable and non-dimmable LED
loads (bulbs)
• 12–24 V LED or halogens with dimmable
electronic transformers
• Dimmable LED drivers (for example, in LED
strips
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DOUBLEDIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DOUBLEDIMMER-CONTROL
Input power 220-240V~50/60Hz
Output power 70W per channel (LED Power Factor =1)
or 1x140W (connected outputs)
Operating temperature (°C Min/Max) 0 - 40
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 919.8 or 921.4 (AH)
Radio range (m) up to 100 m outdoors, up to 30 m indoors
(depending on building structure)
Compliant with European directives RoHS 2011/65/EU, 2015/863/EU - RED 2014/53/EU
Dimensions (mm) 45 x 37 x 20 h
Flood-Control
Flooding and temperature sensor
Universal flooding and temperature sensor.
Flood-Control can be placed on a floor or
wall, using the inputs to install the probe
contacts.
The LED indicator and acoustic alarm alert
the user in the event of flooding and the tilt
sensor warns if the device is moved or tipped.
If a water leak is detected, the system (if it
includes solenoid valves) will also shut off the
water, minimising the damage caused by the
malfunction.
The LED can also be used during field testing of
the Z-Wave network.
The device can be powered by battery or cable
(12/24 VDC).
Flood-Control floats on the surface of the water,
preventing it from being submerged.Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• Unique design.
• Flooding detection and acoustic warning.
• Battery or VDC powered.
• Communicates with the Z-Wave network or
an alarm system via cable.
• With wireless update capability.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
FLOOD-CONTROL Flooding and temperature sensor 1
Code FLOOD-CONTROL
Power supply 12 - 24 VDC
Battery type CR123A (included)
Maximum voltage at output terminals 24 VDC / 20 VAC
Complies with European standards RED 2014/53/EU - RoHS 2011/65/EU
Operating temperature (°C Min/Max) 0 - 40
Temperature measurement range (°C Min/Max) -20 - 100
Precise temperature measurement. (°C) 0.5 (within 0 - 40 range)
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 MHz (US) / 921.4, 919.8 MHz
(ANZ) 869.0 MHz (RU)
Radio range (m) up to 40m (depending on building structure)
Dimensions (mm) 72 Ø x 28 h
Motion-Control
Motion, light and temperature sensor
Motion-Control multifunctional wireless
sensor can detect motion, temperature and
light intensity. It can also detect changes in
position and attempts to tamper with the outer
housing.
Motion-Control is battery powered and updated
via radio. Sensitivity can be adapted to the
user’s needs.
The built-in LED provides information on
recorded movements and temperature changes.
The available functions include a Z-Wave field
tester.
It can be installed quickly, non-invasively and
on any surface. The universal mount enables
the sensor to be located anywhere (including on
walls and ceilings).
Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• It detects even the slightest movement and
change in temperature.
• It is the only one of its kind with an earthquake
detection function.
• Battery-powered.
• Wireless communication via the Z-Wave
protocol.
• With wireless update capability.
• Supports Security Mode (Z-Wave network
security system) with AES-128 encryption.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
MOTION-CONTROL Motion, light and temperature sensor 1
Code MOTION-CONTROL
Battery type CR123A battery, 3.0 VDC (battery included)
Recommended installation height (m) >2
Operating temperature (°C Min/Max) 0 - 40
Temperature measurement range (°C Min/Max) -20 - 100
Precise temperature measurement. (°C) 0.5 (within 0 - 40 range)
Light intensity measurement threshold (LUX) 0 - 32000
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 (US) / 921.4, 919.8 (ANZ) / 869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RED 2014/53/EU - RoHS 2011/65/EU
Dimensions (mm) 56 x 56 x 58.5 h
On/Off-Control2
Two-channel switch module.
The On/Off-Control2 is installed in a wallmounted box and can control two devices
with maximum total power of 2300W
(2x1150W) for resistive/incandescent loads
or 160W (2x80W) for LED loads.
It can be turned on either remotely via the
mobile app, or via a traditional wall switch.
The device can measure energy consumption
and active current power and mains voltage.
Supported device type:
• Incandescent bulbs
• LEDs
• Conductors
• Fluorescent lamps
• Electronic transformers
• Ferromagnetic transformers
• Halogens
• Other electronical appliances matching the
devices electrical specifications, f.e. TV's,
sound systems, coffee makers etc.
Main features:
• Compatible with Z-Wave+ and Z-Wave
controllers. Works also as a repeater.
• Supports secure mode (Z-Wave network
security mode): S0 with AES-128 and S2
encryption.
• Autentication with PRNG encryption.
• Advanced microprocessor control.
• Active power, energy and mains voltage
measurement function.
• Works with various types of switches.
• Works with LED loads.
• Simultaneous or independent outputs control.
• Spring-based quick connector and additional
terminals available for even faster installation.
• First configuration creator (wizard), easy
devices grouping and Auto-Off function, all
conveniently managed through the Yubii
Home app.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
ON/OFF-CONTROL2 Two-channel switch module 1
Code ON/OFF-CONTROL2
Input power 100-240V~50/60Hz
Nominal resistive/incandesent bulbs/halogens channel current 2 x 5A (10A overall)
Nominal LED/fluorescent lamp real power 2 x 80W
Nominal electronic transformers (LED/CCFL External
Ballast Lamp) channel current 2 x 2A
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes (mm) Ø >= 50, depth >= 60
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 919.8 or 921.4 (AH)
Radio range (m) up to 100m outdoors, up to 30m indoors
(depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 46 x 36 x 19.9 h
RGBW-Control
Smart module to control light colour.
The RGBW-Control module provides
remote control of RGB and RGBW LEDs,
halogen lighting and fans.
The connected receivers can be powered with
12V or 24V.
The module provides simple lighting control
and light colour change through the Yubii Home
application. It can manage up to four 0-10V
analogue sensors (temperature, humidity,
wind, air quality, radiation, etc.). The colour of
the lighting in the home can also be changed,
depending on the weather or time of day.
With a minimal design, the RGBW-Control
module lets you regulate the colour of the
lighting in your home. Through the app or voice commands, you
can change the light and create the right
atmosphere for work, relaxation or well-being.
Main features:
• Measurement of present and past energy
consumption.
• Controlled through other Nice devices or any
Z-Wave controller.
• Microprocessor controlled.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
RGBW-CONTROL Universal RGB/RGBW lighting control module 1
Code RGBW-CONTROL
Input power 12-24V
Rated load current (resistive load only) 8 A for 240 V~ (6.5 A for 120 V~)
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (ANZ)
869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
Roll-Control2
Module for controlling rolling shutters, sun
awnings, Venetian blinds and rolling doors.
The Roll-Control2 module controls
alternating current tubular motors, such
as electric rolling shutters, sun awnings,
Venetian blinds and rolling doors.
The module lets you control the exact position
of the motors and, in the case of Venetian
blinds, the movement of the slats.
The device can measure energy consumption
and active current power.
With Roll-Control2, you can control the
connected devices either through the Z-Wave
network or via a switch or button connected
directly to it.
Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems. Works as a repeater.
• It supports Z-Wave network security modes:
S0 with AES-128 and S2 encryption.
• Authentication with PRNG encryption.
• It can be installed with tubular motors with
electronic or mechanical limit switches.
• Energy consumption measurement function.
• It works with various types of button: up-anddown, fixed-position, momentary position
toggle or rolling shutter-specific.
• Works with various types of switches and is
optimised for rolling shutter up/down buttons.
• It can be installed in wall-mounted switch
boxes.
• Wago quick connector and additional
terminals available for even faster installation.
• Setup wizard also from a smartphone.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
ROLL-CONTROL2 Tubular motor control module 1
Code ROLL-CONTROL2
Input power 100-240V~50/60Hz
Rated load current 2 A
Type of load supported single-phase AC
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes (mm) Ø >= 50, depth >= 60
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.85 (EU) 921.4 or 919.8 (ANZ)
Radio range (m) up to 100 m outdoors, up to 30 m indoors (depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 46 x 36 x 19.9 h
Shelly Dimmer 2

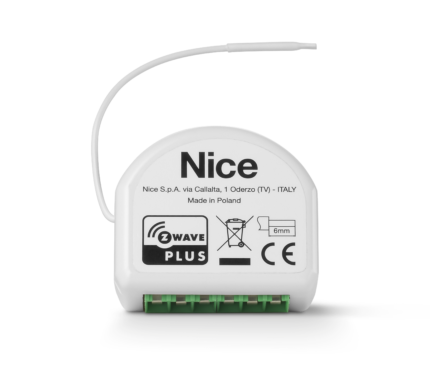

SingleSwitch-Control
Single-channel switch module
SingleSwitch-Control is the perfect solution
for controlling switches or electrical devices over the network; designed for standard housings for simple installation, it enables
activity to be controlled via the Z-Wave network
or with a practical switch.
Small but effective, it also functions as a Z-Wave
signal repeater.
With SingleSwitch-Control, energy consumption
can also be monitored remotely, as it is compatible with any Z-Wave protocol or Z-Wave+
Controller system.
Main features:
• Works with various types of wall-mounted
switches and buttons.
• Supports Z-Wave network security modes:
S0 with AES-128 encryption and S2
authenticated encryption.
• Works as a Z-Wave signal repeater.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
SINGLESWITCH-CONTROL Single-channel switch module 1
Code SINGLESWITCH-CONTROL
Input power 100-240V~50/60Hz
Rated current load (resistive loads only) 8 A per 240 V~ (6.5 A per 120 V~)
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes (mm) Ø >= 50, depth >= 60
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 869.0 (RU)
Radio range (m) up to 50 m outdoors, up to 40 m indoors
(depending on building structure)
Max. transmitted power (dBm) 6
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
Smoke-Control
Smoke and temperature sensor.
Lightweight device with photoelectric
and temperature sensors to detect the
presence of smoke or incipient fire as early
as possible.
Battery powered for possible ceiling installation.
Smoke detection is indicated by an acoustic
signal, flashing LED and sending of the relevant
information to the Z-Wave network.
If the smoke sensor detects a hazardous
situation, it can initiate the alarm scenario. In this
case, the user will immediately receive an alert
on their phone, wherever they are.
The device has an integrated temperature
sensor able to activate the alarm in the
presence of high temperatures. The occupants
of the house will be alerted, even if the fire
occurs without smoke emission.
One feature making the equipment unique is the
ability to analyse data from past events, so that
similar dangers can be avoided in the future.
Main features:
• Compatible with Z-Wave and Z-Wave Plus
control systems.
• 3 levels of sensitivity, in accordance with EN
14604:2005.
• Built-in housing opening detector.
• A safety mechanism prevents the housing
from being closed without a battery installed.
• An alarm is signalled by a loud sound, LED
indicator and message sent to the Z-Wave
network.
• An additional feature signals a rise in
temperature above a preset threshold.
• Diagnostic efficiency test every 10 seconds to
prevent possible malfunctions.
• The self-test function can be implemented
manually
• All temperature and smoke readings are
recorded in an internal memory.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
SMOKE-CONTROL Smoke and temperature sensor 1
Code SMOKE-CONTROL
Battery type CR123A 3.0V DC (included)
Operating temperature (°C Min/Max) 0 - 55
Operating humidity 0% - 93%
Temperature measurement range (°C Min/Max) -20 - 100
Precise temperature measurement. (°C) 0.5 C (within 0C - 55C range)
Smoke sensitivity level 1: 1.20 +/- 0.5% obs/ft, level 2: 1.80 +/- 0.5% obs/ft,
level 3: 2.80 +/- 0.5% obs/ft
Sound intensity level 85dB / 3m
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4, 869.85 (EU) / 908.4, 916.0 (US) / 921.4, 919.8 (ANZ) / 869.0 (RU)
Complies with LVD 2006/95/EC - EMC 2004/108/EC - R&TTE 1999/5/EC -
RoHS 2011/65/EU - EN 14604:2005
Radio range (m) up to 40m (depending on building structure)
Dimensions (mm) 65 Ø x 28 h
