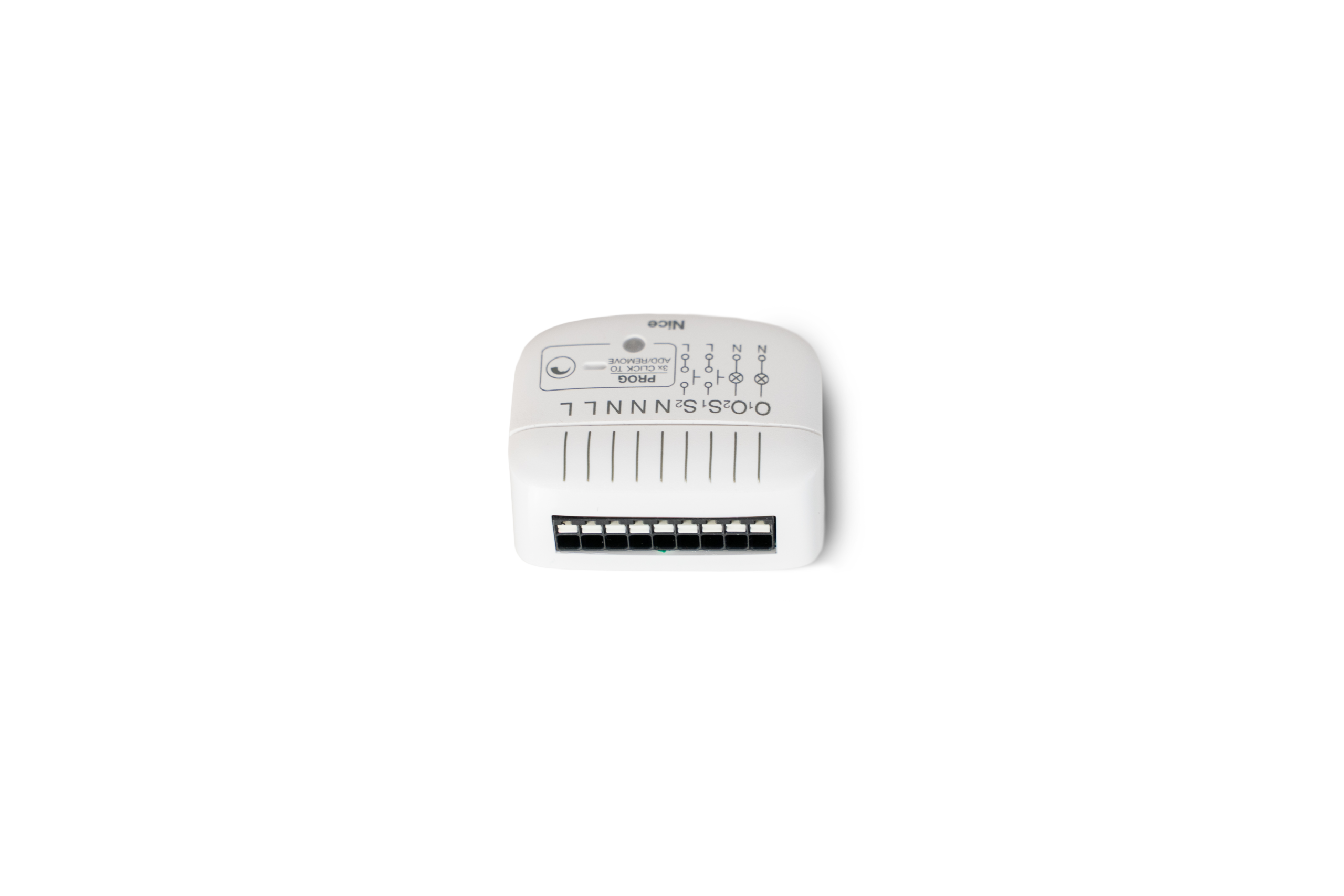

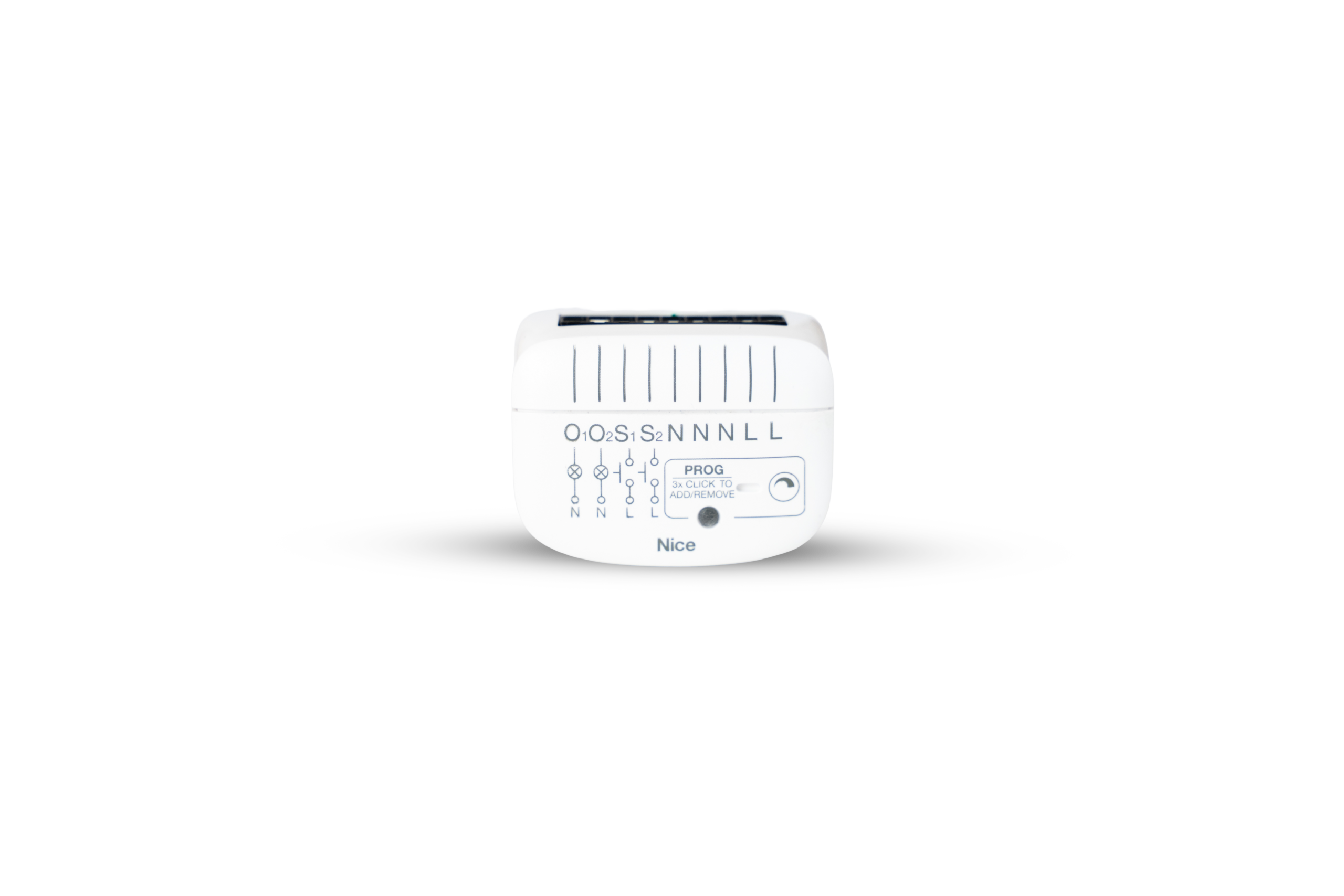

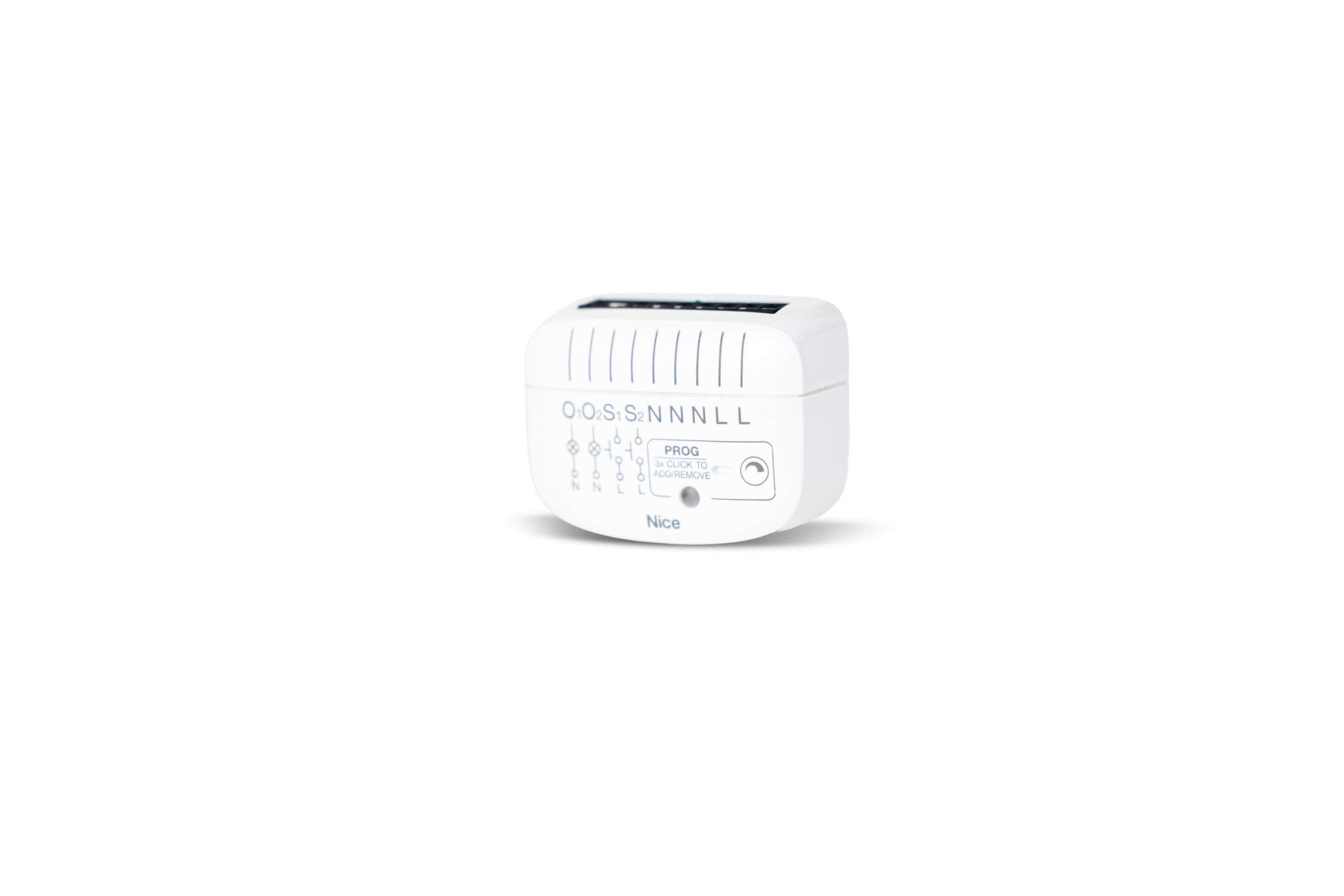

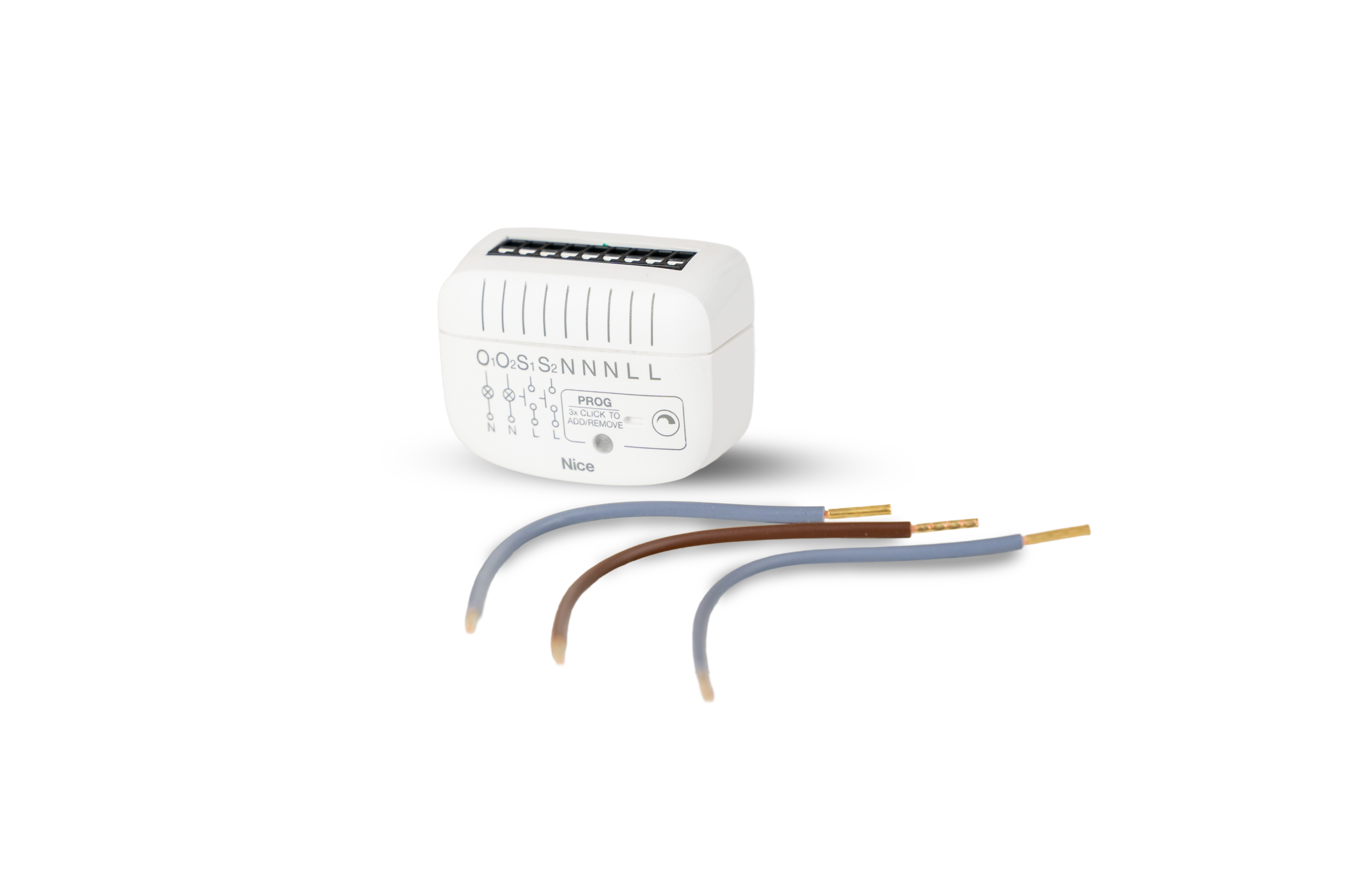

DoubleDimmer-Control
6.000,00 ден
Universal module to regulate light intensity,
compatible with a range of light sources
DoubleDimmer-Control can be used as a
dimmer or switch in three-wire systems.
The device can adjust light intensity according
to preference and situation.
DoubleDimmer-Control measures energy
consumption and active current power and
voltage, while the safety mechanisms protect
against overheating, overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
It also supports personalized calibration and
allows the outputs to be configured either
separately (2×70W) or combined to deliver up to
140W on a single output.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
DoubleDimmer-Control works with the
following sources:
• 220–240 V dimmable and non-dimmable LED
loads (bulbs)
• 12–24 V LED or halogens with dimmable
electronic transformers
• Dimmable LED drivers (for example, in LED
strips
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DOUBLEDIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DOUBLEDIMMER-CONTROL
Input power 220-240V~50/60Hz
Output power 70W per channel (LED Power Factor =1)
or 1x140W (connected outputs)
Operating temperature (°C Min/Max) 0 – 40

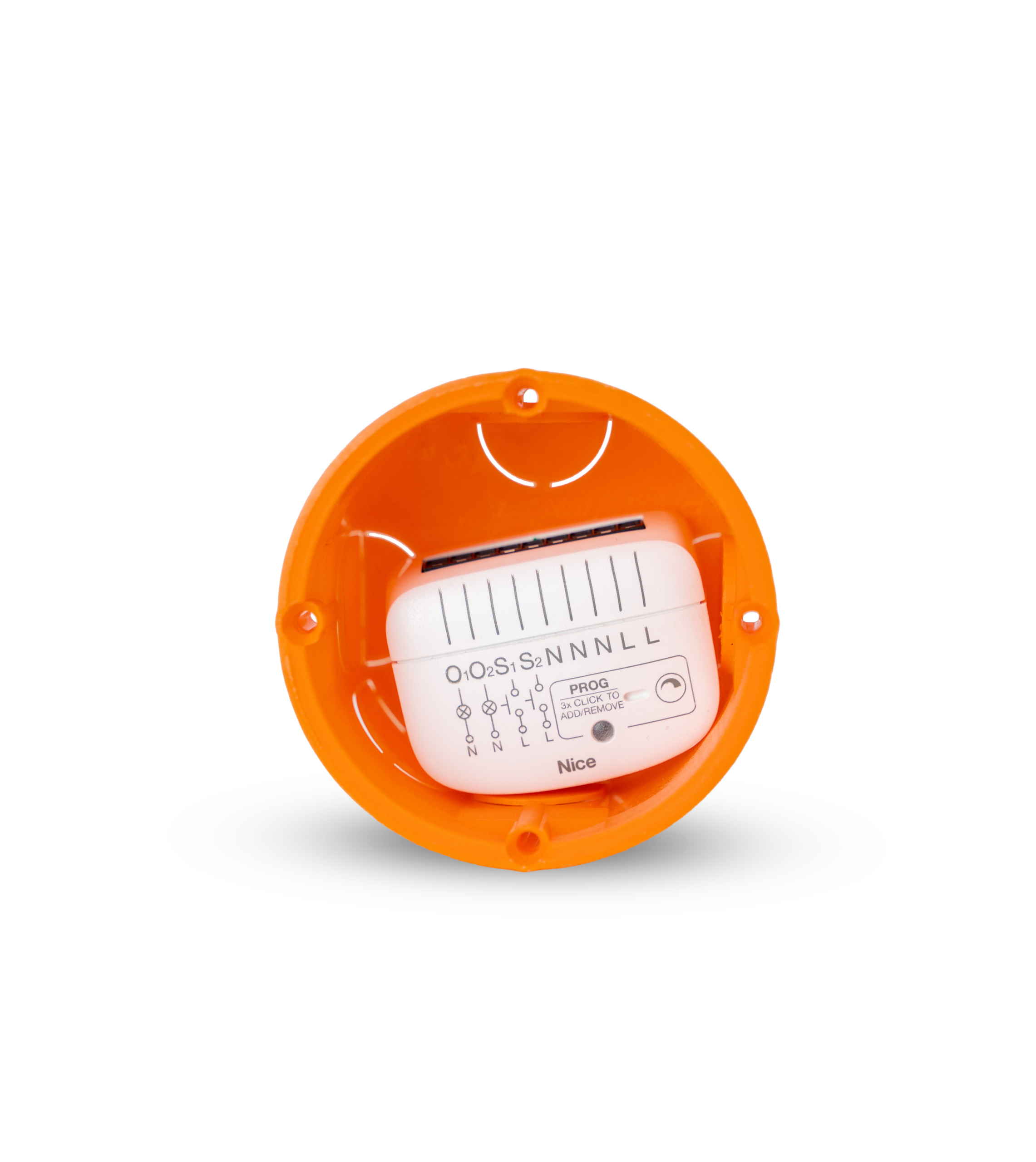

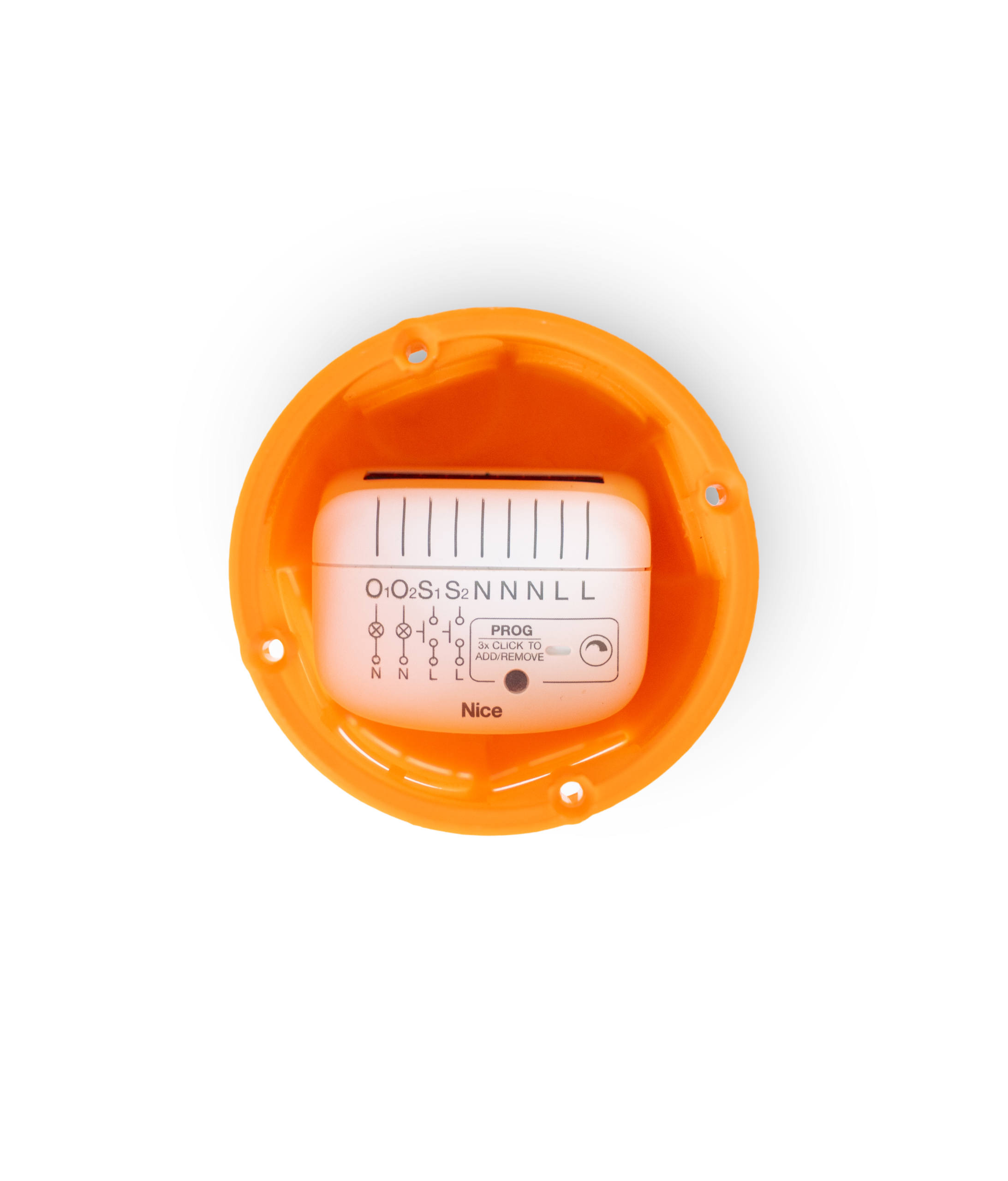

For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 919.8 or 921.4 (AH)
Radio range (m) up to 100 m outdoors, up to 30 m indoors
(depending on building structure)
Compliant with European directives RoHS 2011/65/EU, 2015/863/EU – RED 2014/53/EU
Dimensions (mm) 45 x 37 x 20 h
5 in stock (can be backordered)
