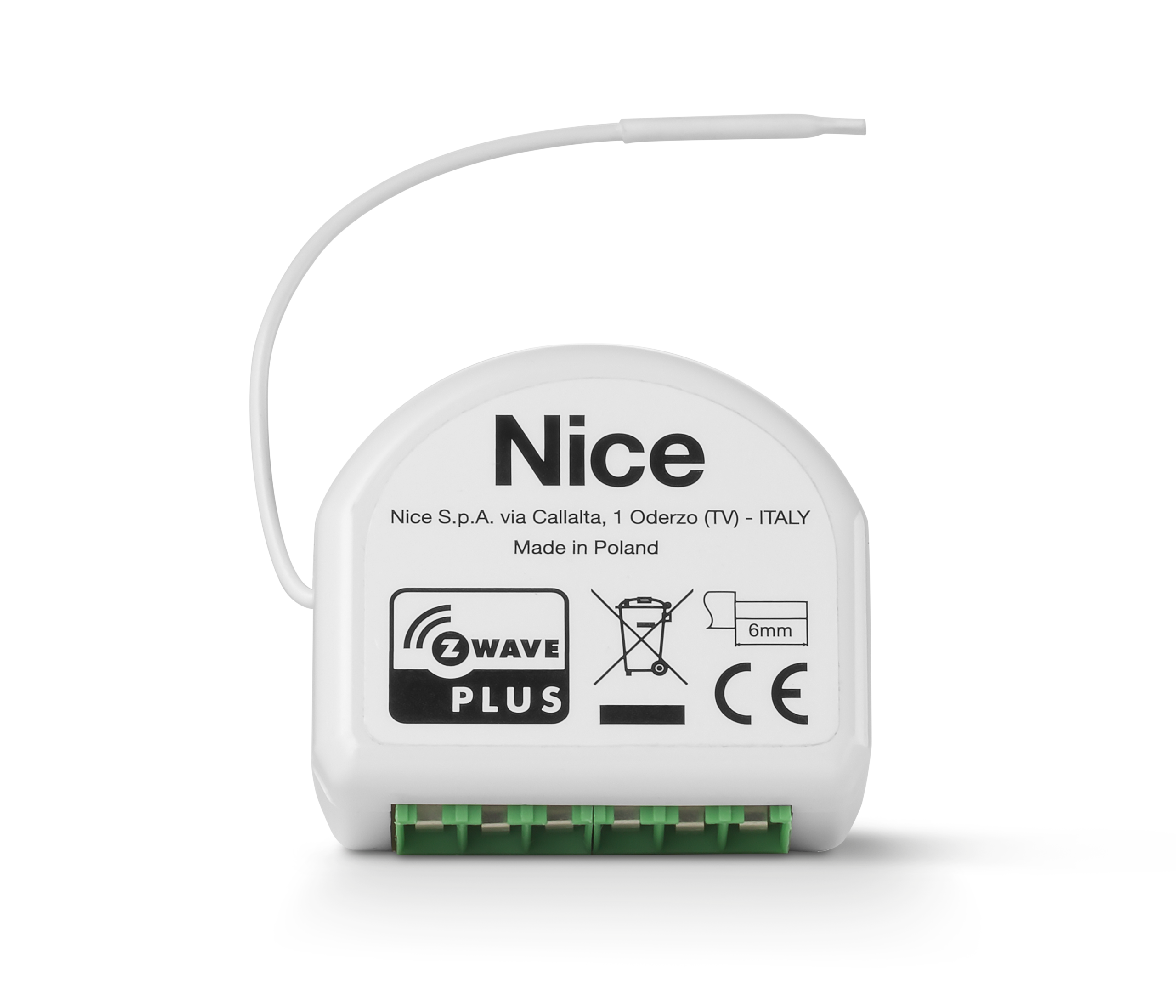

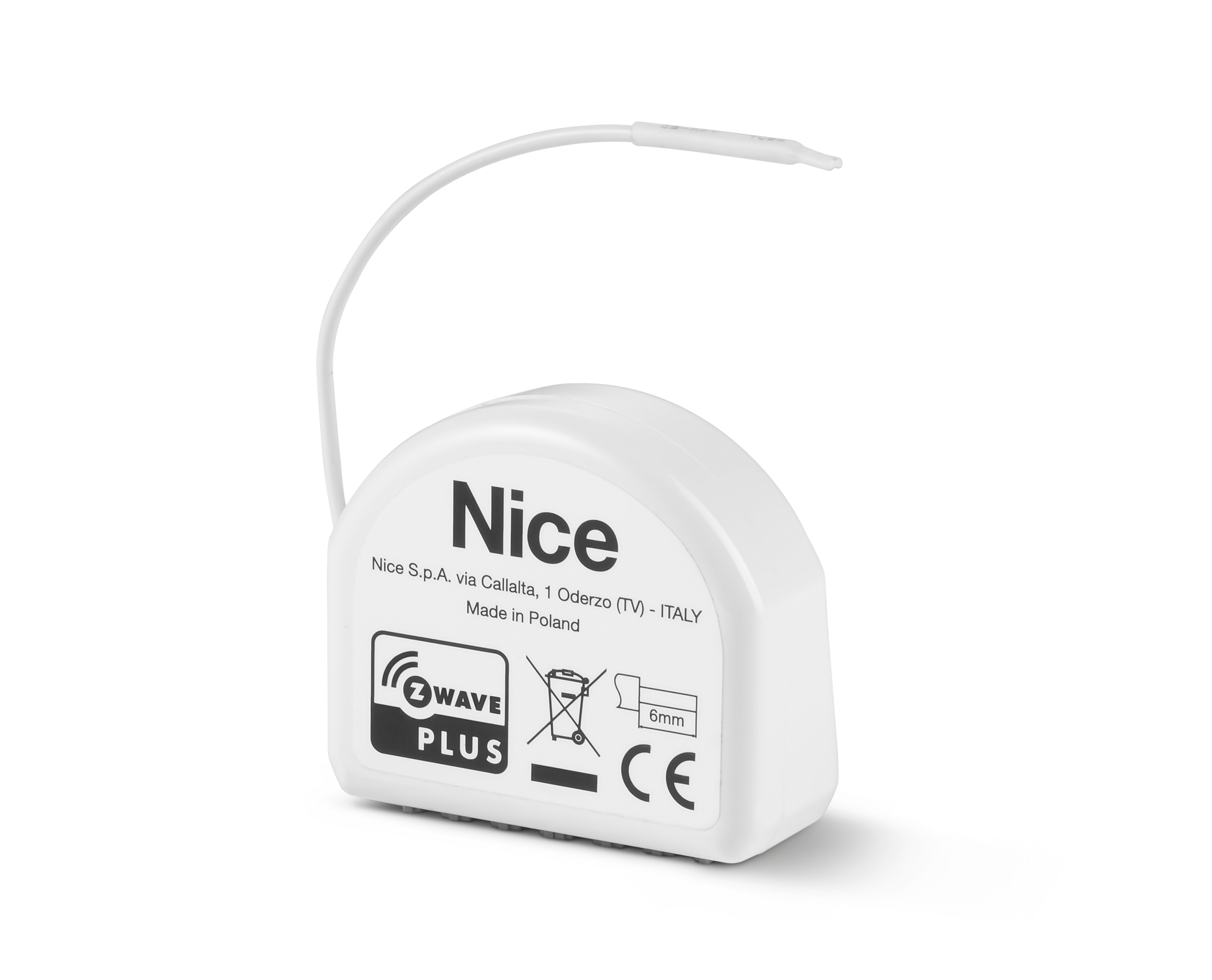

Dimmer-Control
4.300,00 ден
Universal module to regulate light intensity,
compatible with a range of light sources.
Dimmer-Control can be used as a dimmer
or switch in both two-wire and three-wire
systems.
The device can adjust light intensity according
to preference and situation.
Dimmer-Control measures energy consumption
and active current power, while the safety
mechanisms protect against overheating,
overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
Dimmer-Control works with the following
sources:
• 230V incandescent or halogen bulbs.
• ELV halogen lamps and dimmable LED bulbs
(with electronic transformer).
• MLV halogen lamps (with transformer).
• LED bulbs with adjustable brightness.
• Compact fluorescent tubes with adjustable
brightness.
• Dimmable light sources (power factor > 0.5)
with a minimum power of 5VA (depending on
type of load)*.
Excluding dimming function, compatible
with:
• Compact fluorescent (CFL) bulbs with
electronic ballast.
• Fluorescent lamps with electronic ballast.
• LED bulbs (power factor >0.7).
• Supported light sources (power factor >0.5)
with a minimum power of 5VA (depending on
type of load)*.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DIMMER-CONTROL
Input power 220-240V~50Hz
Output power 50-250W (resistive load)
Operating temperature (°C Min/Max) 0 – 35
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (ANZ)
869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RoHS 2011/65/EU – RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
20 in stock (can be backordered)
