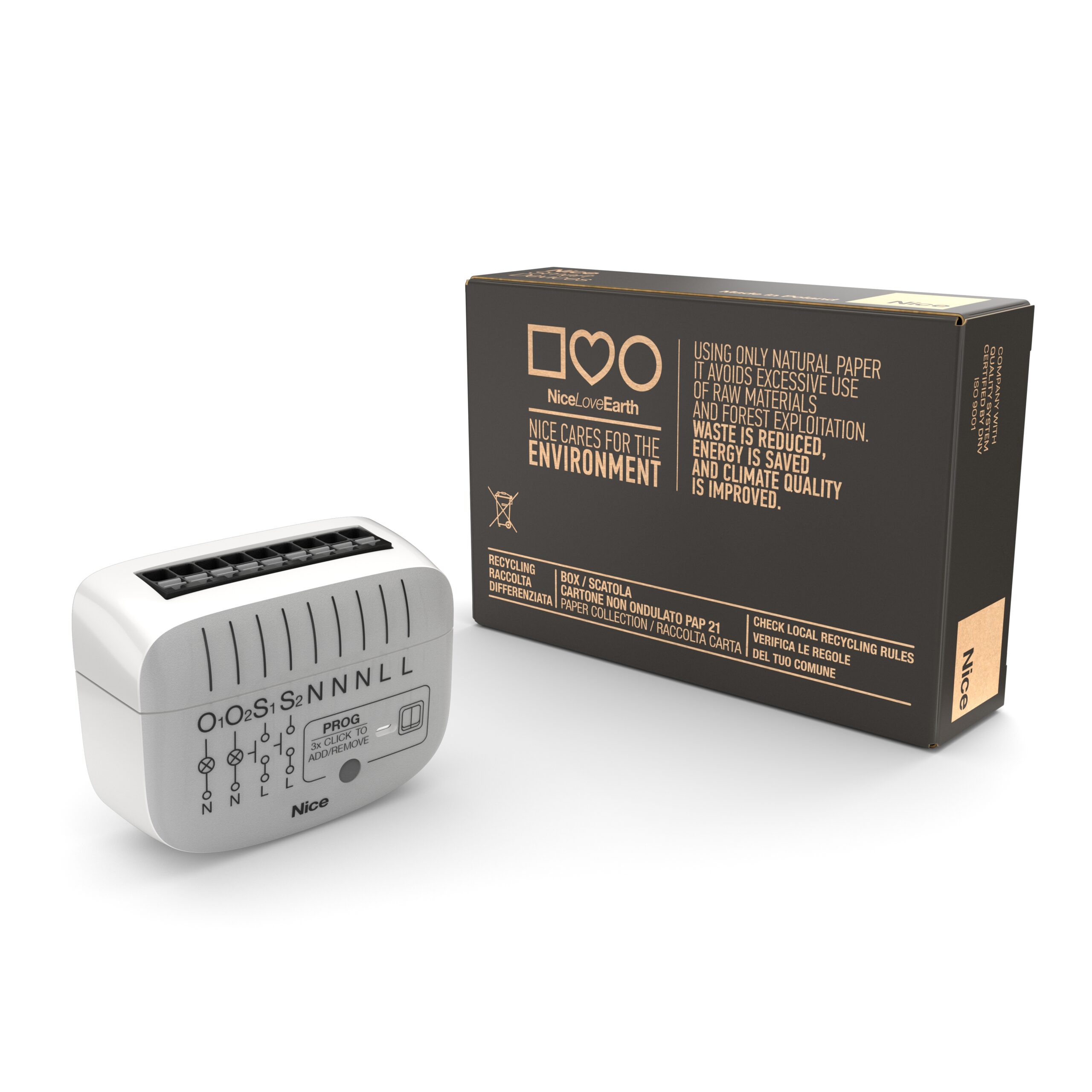

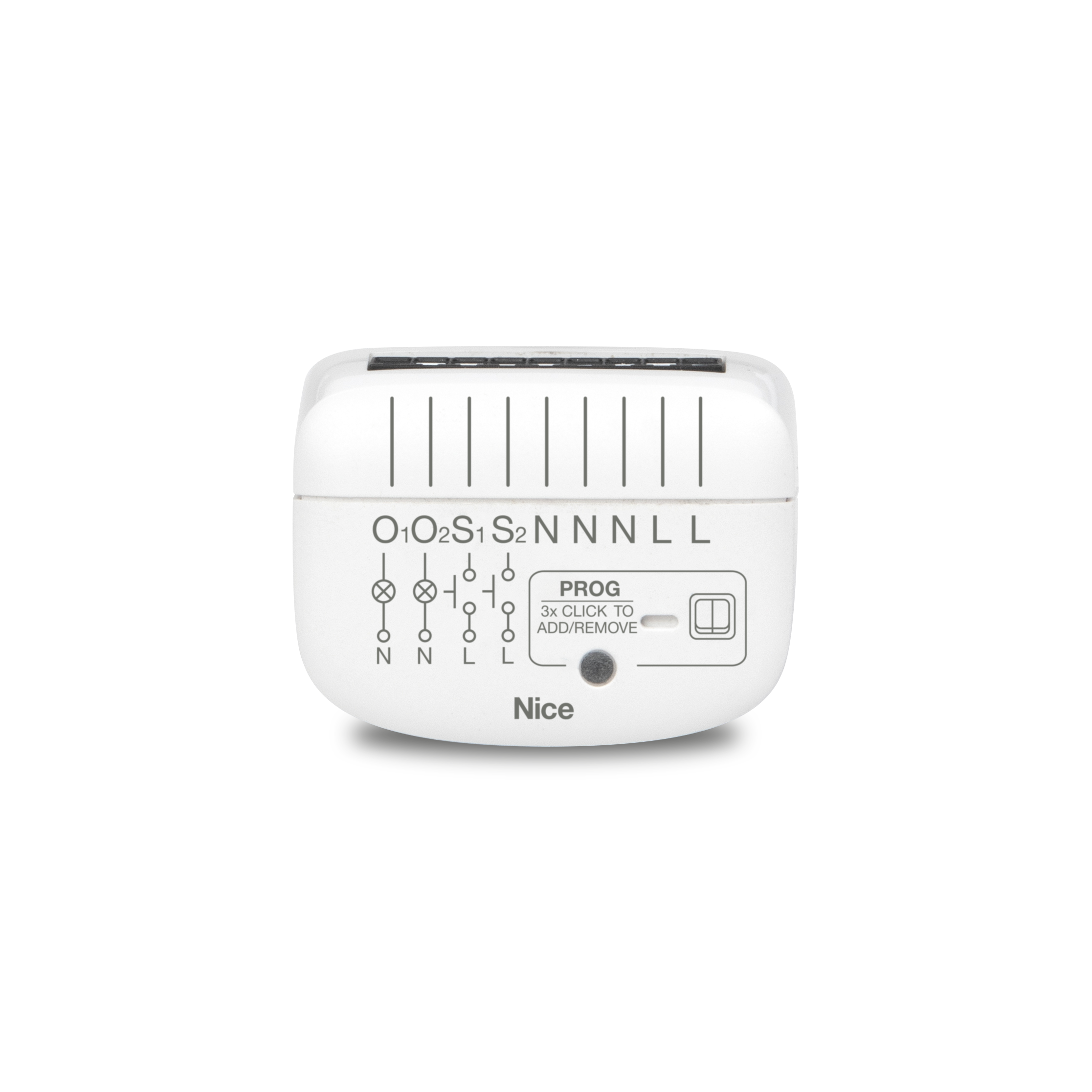

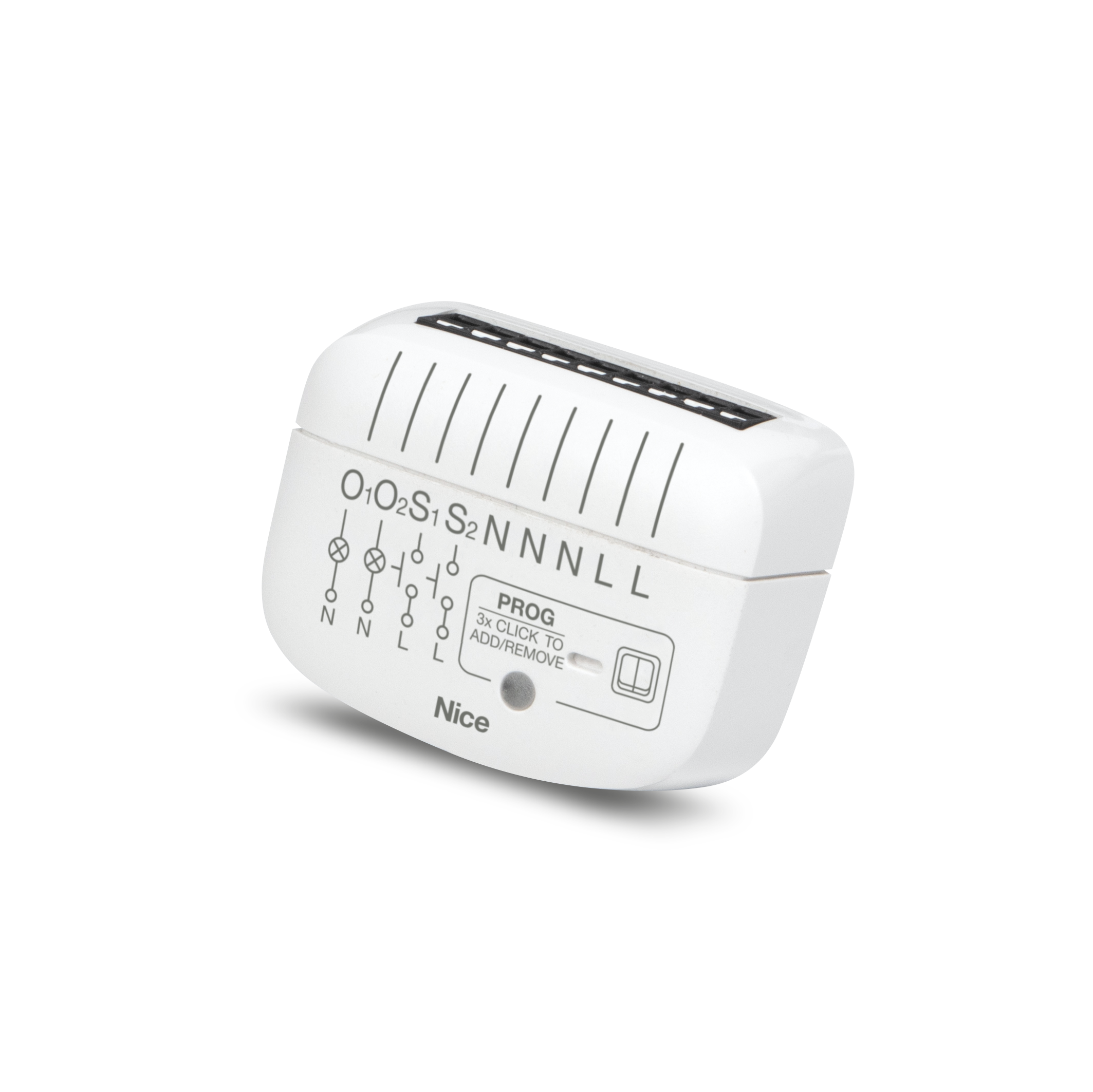

On/Off-Control2
4.300,00 ден
Two-channel switch module.
The On/Off-Control2 is installed in a wallmounted box and can control two devices
with maximum total power of 2300W
(2x1150W) for resistive/incandescent loads
or 160W (2x80W) for LED loads.
It can be turned on either remotely via the
mobile app, or via a traditional wall switch.
The device can measure energy consumption
and active current power and mains voltage.
Supported device type:
• Incandescent bulbs
• LEDs
• Conductors
• Fluorescent lamps
• Electronic transformers
• Ferromagnetic transformers
• Halogens
• Other electronical appliances matching the
devices electrical specifications, f.e. TV’s,
sound systems, coffee makers etc.
Main features:
• Compatible with Z-Wave+ and Z-Wave
controllers. Works also as a repeater.
• Supports secure mode (Z-Wave network
security mode): S0 with AES-128 and S2
encryption.
• Autentication with PRNG encryption.
• Advanced microprocessor control.
• Active power, energy and mains voltage
measurement function.
• Works with various types of switches.
• Works with LED loads.
• Simultaneous or independent outputs control.
• Spring-based quick connector and additional
terminals available for even faster installation.
• First configuration creator (wizard), easy
devices grouping and Auto-Off function, all
conveniently managed through the Yubii
Home app.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
ON/OFF-CONTROL2 Two-channel switch module 1
Code ON/OFF-CONTROL2
Input power 100-240V~50/60Hz
Nominal resistive/incandesent bulbs/halogens channel current 2 x 5A (10A overall)
Nominal LED/fluorescent lamp real power 2 x 80W
Nominal electronic transformers (LED/CCFL External
Ballast Lamp) channel current 2 x 2A
Operating temperature (°C Min/Max) 0 – 35
For installation in wall-mounted boxes (mm) Ø >= 50, depth >= 60
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 919.8 or 921.4 (AH)
Radio range (m) up to 100m outdoors, up to 30m indoors
(depending on building structure)
Compliant with European directives RoHS 2011/65/EU – RED 2014/53/EU
Dimensions (mm) 46 x 36 x 19.9 h
20 in stock (can be backordered)
Additional information
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
DoubleDimmer-Control
Universal module to regulate light intensity,
compatible with a range of light sources
DoubleDimmer-Control can be used as a
dimmer or switch in three-wire systems.
The device can adjust light intensity according
to preference and situation.
DoubleDimmer-Control measures energy
consumption and active current power and
voltage, while the safety mechanisms protect
against overheating, overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
It also supports personalized calibration and
allows the outputs to be configured either
separately (2×70W) or combined to deliver up to
140W on a single output.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
DoubleDimmer-Control works with the
following sources:
• 220–240 V dimmable and non-dimmable LED
loads (bulbs)
• 12–24 V LED or halogens with dimmable
electronic transformers
• Dimmable LED drivers (for example, in LED
strips
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DOUBLEDIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DOUBLEDIMMER-CONTROL
Input power 220-240V~50/60Hz
Output power 70W per channel (LED Power Factor =1)
or 1x140W (connected outputs)
Operating temperature (°C Min/Max) 0 - 40
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (800 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 919.8 or 921.4 (AH)
Radio range (m) up to 100 m outdoors, up to 30 m indoors
(depending on building structure)
Compliant with European directives RoHS 2011/65/EU, 2015/863/EU - RED 2014/53/EU
Dimensions (mm) 45 x 37 x 20 h

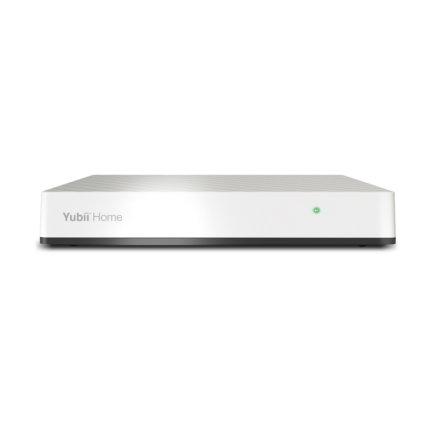

Yubii Home
The gateway that manages and communicates
with all smart devices in your home.Yubii Home is the heart of the smart home,
a hub that takes care of the comfort and
safety of the whole family:
• It receives data from the sensors, processes
it and operates the automations accordingly
based on your preferences.
• It can integrate and control lights, rolling shutters, gates, doors and windows, household
appliances, heating and irrigation systems
and multimedia devices, as well as detect
water leaks, carbon monoxide and fires.
Yubii Home guarantees just the right level
of comfort and control in every room,
tailored to the needs of its occupants.
The home becomes a perfect, safe, smart and
comfortable environment that can be managed
through automated scenarios, voice control
and from smartphone, tablets and smart
watches.
Yubii Home lets you manage natural and artificial
light and heating intelligently and, by
monitoring electrical loads, it can also help
boost your home’s energy efficiency.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
YH-001 Yubii Home Gateway 1
Code YH-001
Power supply 5V DC, max. 1A (adapter included)
Operating temperature 0-40°C
Operating humidity max. 75% relative humidity (without condensate)
Power connector USB Micro B
Dimensions 178x110x31 mm
RADIO COMMUNICATION
Protocol Radio frequency Maximum transmission power
Z-Wave
(700 series)
868.0-868.6 MHz
869.7-870.0 MHz +9 dBm
Wi-Fi
(802.11 b/g/n) 2400.0-2483.5 MHz +20 dBm
433 MHz 433.05-434.04 MHz +9 dBm
868 MHz 868.0-869.65 MHz +5 dBm

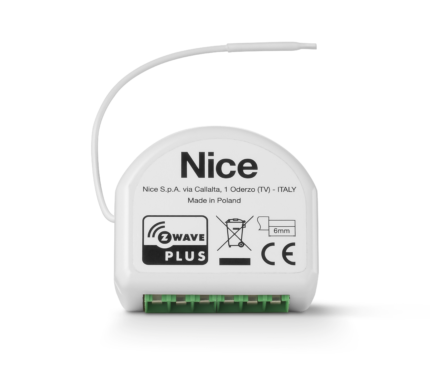

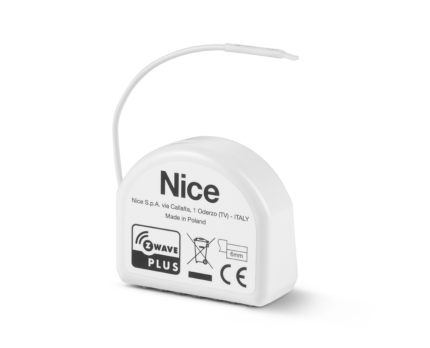

Dimmer-Control
Universal module to regulate light intensity,
compatible with a range of light sources.
Dimmer-Control can be used as a dimmer
or switch in both two-wire and three-wire
systems.
The device can adjust light intensity according
to preference and situation.
Dimmer-Control measures energy consumption
and active current power, while the safety
mechanisms protect against overheating,
overload and voltage drop.
Correct configuration of the device maximises
the working life of bulbs and reduces current
consumption.
To avoid flickering when connected to low-load
light sources, the device should be installed with
an additional accessory – the LED adapter.
Dimmer-Control works with the following
sources:
• 230V incandescent or halogen bulbs.
• ELV halogen lamps and dimmable LED bulbs
(with electronic transformer).
• MLV halogen lamps (with transformer).
• LED bulbs with adjustable brightness.
• Compact fluorescent tubes with adjustable
brightness.
• Dimmable light sources (power factor > 0.5)
with a minimum power of 5VA (depending on
type of load)*.
Excluding dimming function, compatible
with:
• Compact fluorescent (CFL) bulbs with
electronic ballast.
• Fluorescent lamps with electronic ballast.
• LED bulbs (power factor >0.7).
• Supported light sources (power factor >0.5)
with a minimum power of 5VA (depending on
type of load)*.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
DIMMER-CONTROL Light source control and regulation module 1
LED ADAPTOR Universal accessory for low power light sources 1
Code DIMMER-CONTROL
Input power 220-240V~50Hz
Output power 50-250W (resistive load)
Operating temperature (°C Min/Max) 0 - 35
For installation in wall-mounted boxes Ø >= 50mm, depth >= 60mm
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 908.4, 908.42 or 916.0 (US) / 921.4 or 919.8 (ANZ)
869.0 (RU)
Radio range (m) up to 40m (depending on building structure)
Compliant with European directives RoHS 2011/65/EU - RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h

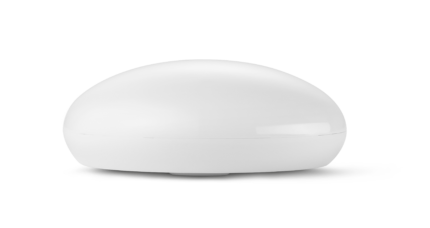

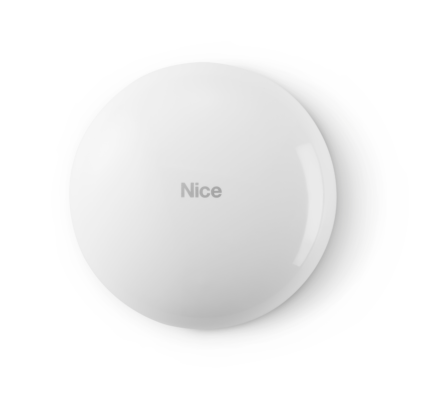

Flood-Control
