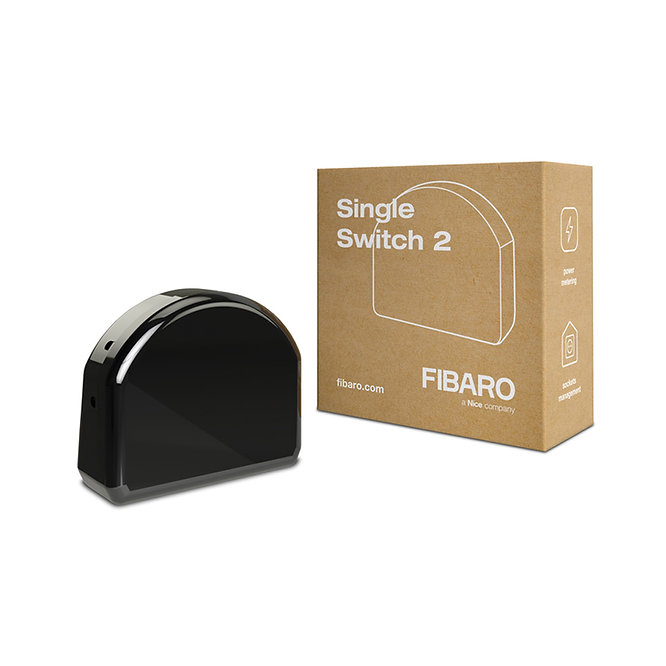

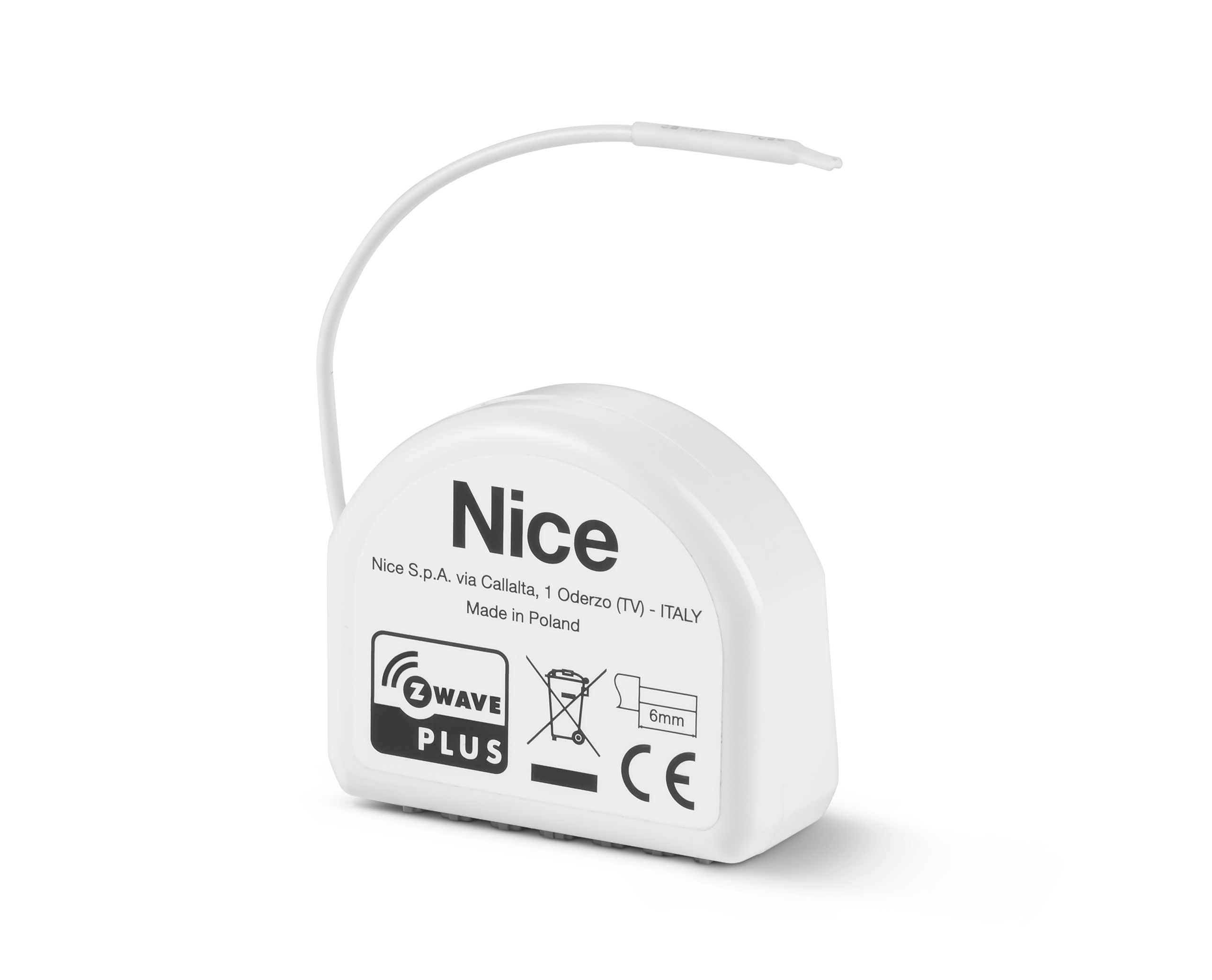

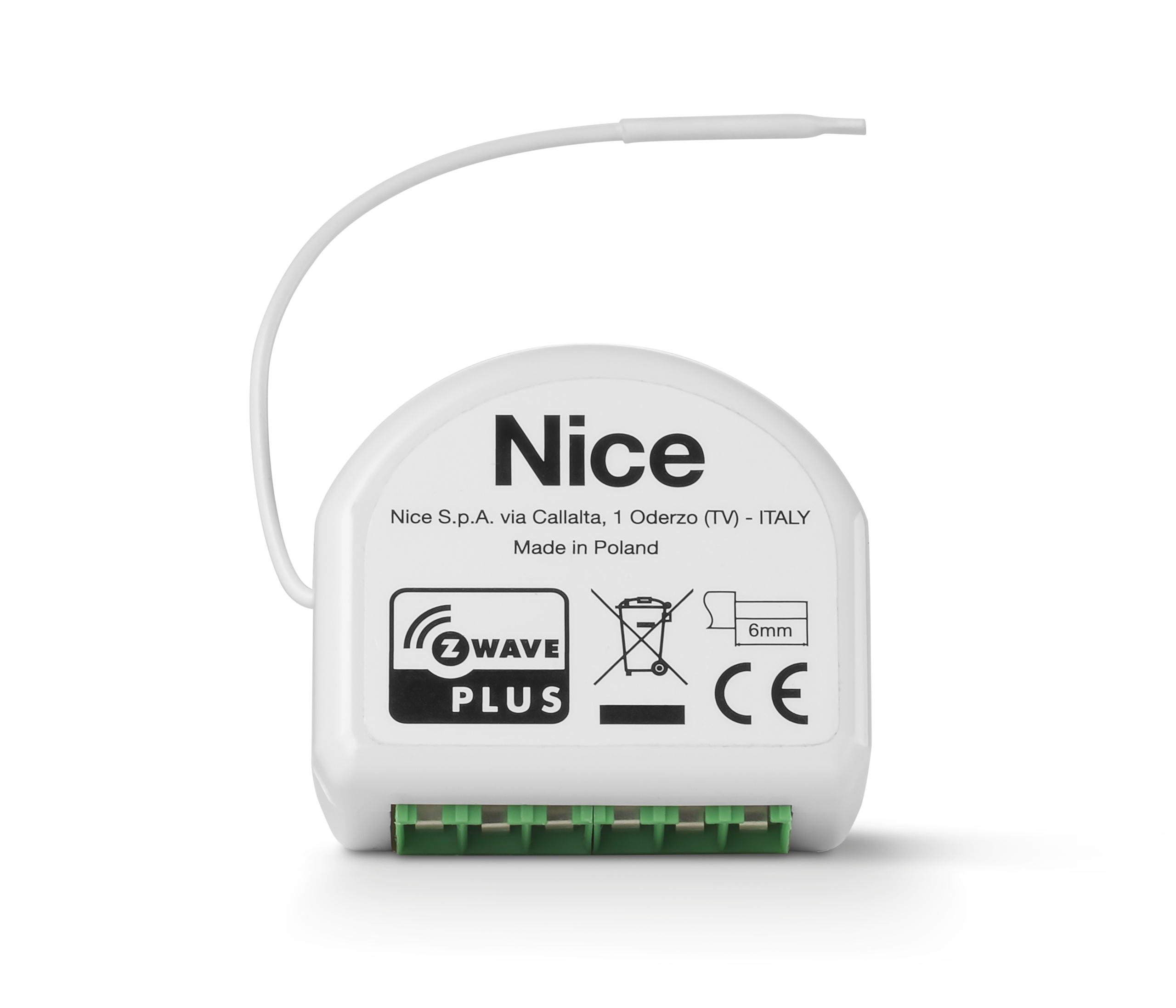

SingleSwitch-Control
4.800,00 ден
Single-channel switch module
SingleSwitch-Control is the perfect solution
for controlling switches or electrical devices over the network; designed for standard housings for simple installation, it enables
activity to be controlled via the Z-Wave network
or with a practical switch.
Small but effective, it also functions as a Z-Wave
signal repeater.
With SingleSwitch-Control, energy consumption
can also be monitored remotely, as it is compatible with any Z-Wave protocol or Z-Wave+
Controller system.
Main features:
• Works with various types of wall-mounted
switches and buttons.
• Supports Z-Wave network security modes:
S0 with AES-128 encryption and S2
authenticated encryption.
• Works as a Z-Wave signal repeater.
TECHNICAL SPECIFICATIONS
Code Description Pcs./pack Certificates
SINGLESWITCH-CONTROL Single-channel switch module 1
Code SINGLESWITCH-CONTROL
Input power 100-240V~50/60Hz
Rated current load (resistive loads only) 8 A per 240 V~ (6.5 A per 120 V~)
Operating temperature (°C Min/Max) 0 – 35
For installation in wall-mounted boxes (mm) Ø >= 50, depth >= 60
Radio protocol Z-Wave (500 series)
Radio frequency (MHz) 868.4 or 869.8 (EU) / 869.0 (RU)
Radio range (m) up to 50 m outdoors, up to 40 m indoors
(depending on building structure)
Max. transmitted power (dBm) 6
Compliant with European directives RoHS 2011/65/EU – RED 2014/53/EU
Dimensions (mm) 42.5 x 38.25 x 20.3 h
20 in stock (can be backordered)
