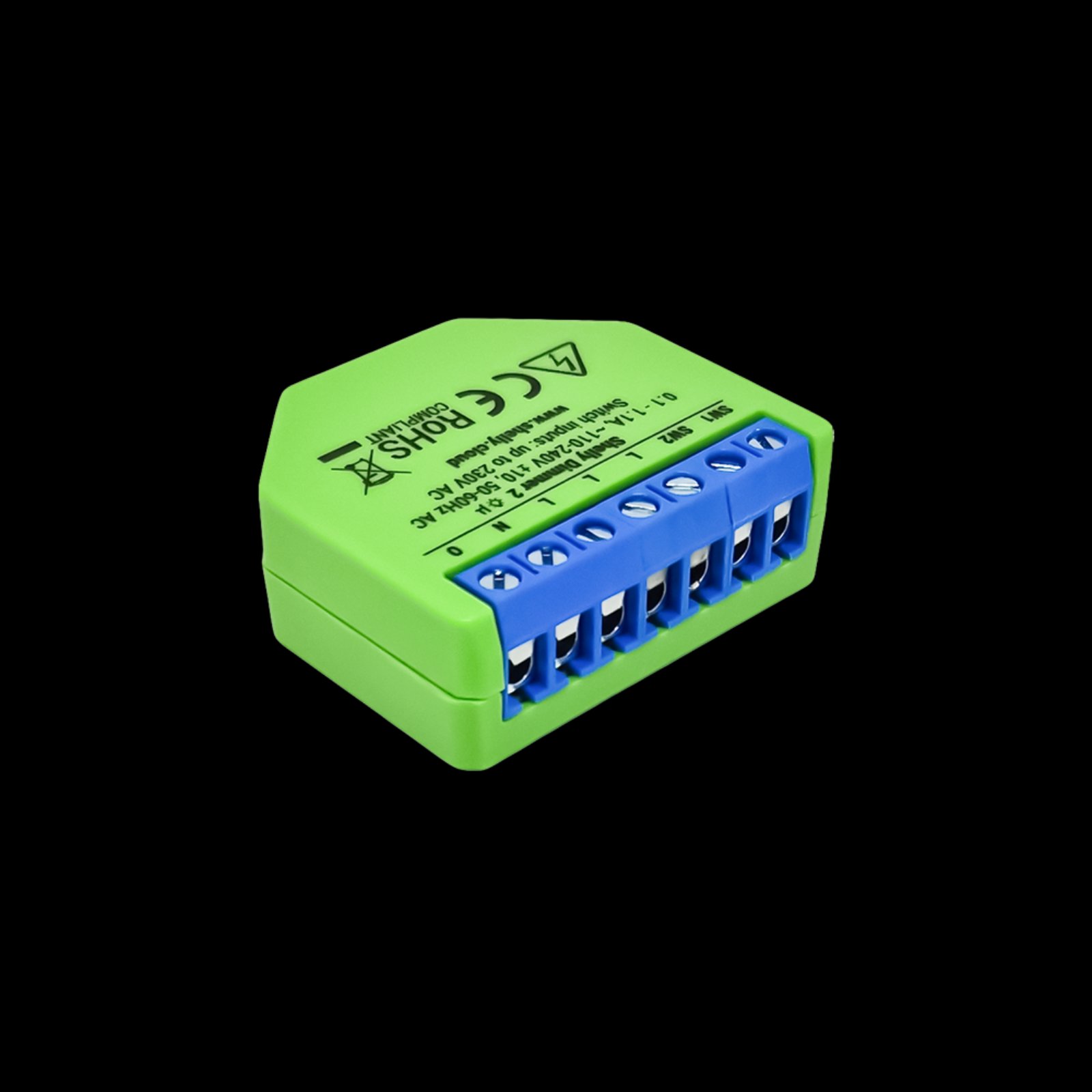

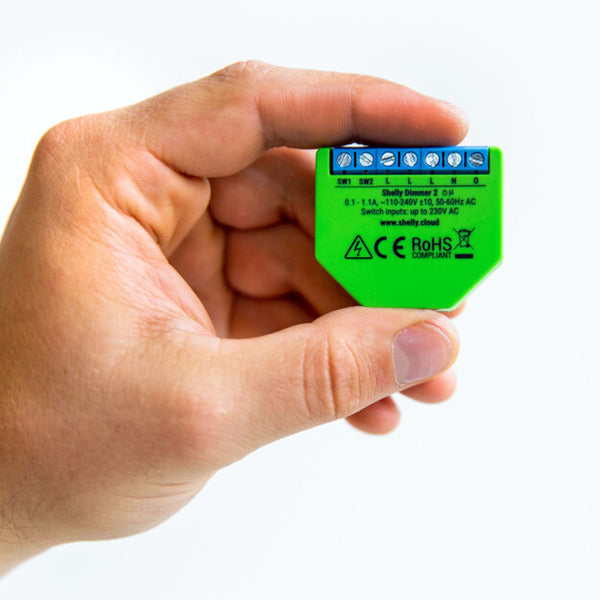

Shelly Dimmer 2

Category: Smart HOME модули Brand: Shelly

Description

WiFi-operated dimmer

Control a wide range of dimmable LED, halogen lights and ferromagnetic/triac transformers with the smallest WiFi-operated dimmer in the world, Shelly Dimmer2 – working without a neutral line.

Shelly Dimmer2

Has an embedded webserver and connects to your Wi-Fi network
Designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
Can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system’s component
Overload and temperature protection
For multiple bulbs connected to one Dimmer2, all bulbs need to be equal in power load and technology
Easy control through the Shelly app, various protocols and platforms, as well as voice assistants.

Technical Specifications
POWER
Power supply AC 110-230V ±10%, 50/60Hz
Channels 1 Channel
SPECIAL FUNCTIONS
Device temperature protection Yes
Overload protection Yes
Power measurement Yes
Dimming Yes
Dimmable LED 50-200VA / 10W – 200W
Incandescent and halogen light sources 10-220W
Working without a neutral line Yes
FEATURES
Colour changing No
Predefined effects Yes
Operational temperature 0°C to + 35 °C
Device power consumption < 1 W
Intelligent On/Off Yes
Local and remote control Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
CONNECTIVITY
Wireless Yes
Wi-Fi Protocol 802.11 b/g/n
Wi-Fi Radio frequency 2412 – 2484 MHz
Wi-Fi Radio signal power 1mW
Wi-Fi Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size 42mm x 36mm x 14 mm
